基于NSCT结合显著图与区域能量的红外与可见光图像融合

牛振华, 邢延超, 林英超, 王晨轩

牛振华, 邢延超, 林英超, 王晨轩. 基于NSCT结合显著图与区域能量的红外与可见光图像融合[J]. 红外技术, 2024, 46(1): 84-93.
引用本文: 牛振华, 邢延超, 林英超, 王晨轩. 基于NSCT结合显著图与区域能量的红外与可见光图像融合[J]. 红外技术, 2024, 46(1): 84-93.
NIU Zhenhua, XING Yanchao, LIN Yingchao, WANG Chenxuan. Infrared and Visible Image Fusion Based on NSCT Combined with Saliency Map and Region Energy[J]. Infrared Technology , 2024, 46(1): 84-93.
Citation: NIU Zhenhua, XING Yanchao, LIN Yingchao, WANG Chenxuan. Infrared and Visible Image Fusion Based on NSCT Combined with Saliency Map and Region Energy[J]. Infrared Technology , 2024, 46(1): 84-93.

基于NSCT结合显著图与区域能量的红外与可见光图像融合

基金项目:

山东省自然科学基金 ZR2021MF101

详细信息
    作者简介:

    牛振华(1996-),男,硕士研究生,主要从事图像处理方面的研究。E-mail: 2215176247@qq.com

    通讯作者:

    邢延超(1973-),男,博士,副教授,研究方向为数字信号处理,水声通信技术。E-mail:9609891@qq.com

  • 中图分类号: V271.4;TP391

Infrared and Visible Image Fusion Based on NSCT Combined with Saliency Map and Region Energy

  • 摘要: 针对传统的红外与可见光图像融合出现的清晰度和对比度偏低,目标不够突出的问题,本文提出了一种基于Non-subsampled Contourlet(NSCT)变换结合显著图与区域能量的融合方法。首先,使用改进的频率调谐(Frequency-tuned, FT)方法求出红外图像显著图并归一化得到显著图权重,单尺度Retinex(Single-scale Retinex, SSR)处理可见光图像。其次,使用NSCT分解红外与可见光图像,并基于归一化显著图与区域能量设计新的融和权重来指导低频系数融合,解决了区域能量自适应加权容易引入噪声的问题;采用改进的“加权拉普拉斯能量和”指导高频系数融合。最后,通过逆NSCT变换求出融合图像。本文方法与7种经典方法在6组图像中进行对比实验,在信息熵、互信息、平均梯度和标准差指标中最优,在空间频率中第一组图像为次优,其余图像均为最优结果。融合图像信息量丰富、清晰度高、对比度高并且亮度适中易于人眼观察,验证了本文方法的有效性。
    Abstract: To address the problems of low clarity and contrast of indistinct targets in traditional infrared and visible image-fusion algorithms, this study proposes a fusion method based on non-subsampled contourlet transform (NSCT) combined with a saliency map and region energy. First, an improved frequency-tuning (FT) method is used to obtain the infrared image saliency map, which is subsequently normalized to obtain the saliency map weight. A single-scale retinex (SSR) algorithm is then used to enhance the visible image. Second, NSCT is used to decompose the infrared and visible images, and a new fusion weight is designed based on the normalized saliency map and region energy to guide low-frequency coefficient fusion. This solves the problem of region-energy adaptive weighting being prone to introducing noise, and the improved "weighted Laplace energy sum" is used to guide the fusion of high-frequency coefficients. Finally, the fused image is obtained by inverse NSCT. Six groups of images were used to compare the proposed method with seven classical methods. The proposed method outperformed others in terms of information entropy, mutual information, average gradient, and standard deviation. Regarding spatial frequency, the first group of images was second best, and the remaining images exhibited the best results. The fusion images displayed rich information, high resolution, high contrast, and moderate brightness, demonstrating suitability for human observation, which verifies the effectiveness of this method.

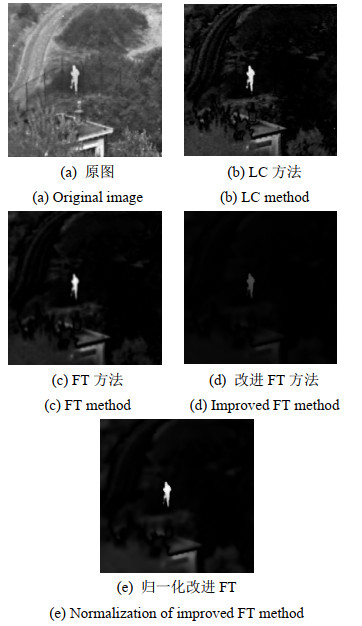

  • 图  1   红外图像显著图

    Figure  1.   Infrared image saliency map

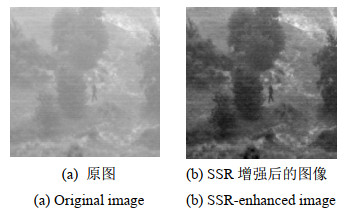

    图  2   可见光图像的增强

    Figure  2.   Enhancement of visible light images

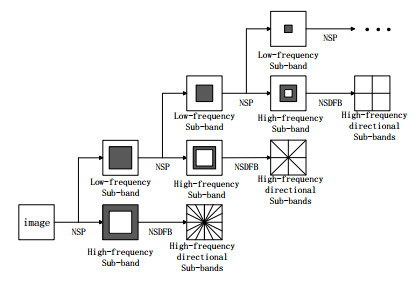

    图  3   NSCT分解示意图

    Figure  3.   Schematic diagram of NSCT decomposition

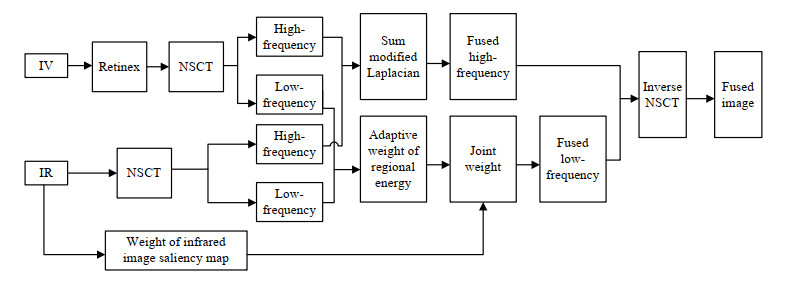

    图  4   本文图像融合方法流程框图

    Figure  4.   Flow chart of the image fusion method in this paper

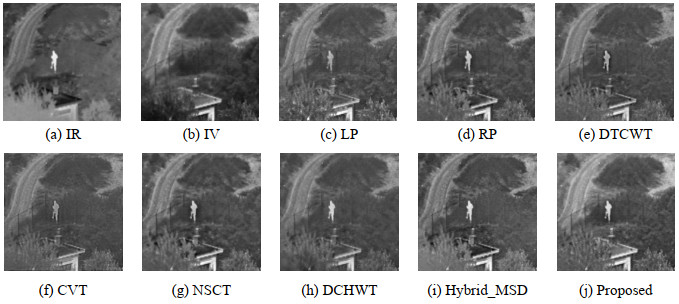

    图  5   Nato_camp的融合结果

    Figure  5.   Fusion results of Nato_camp

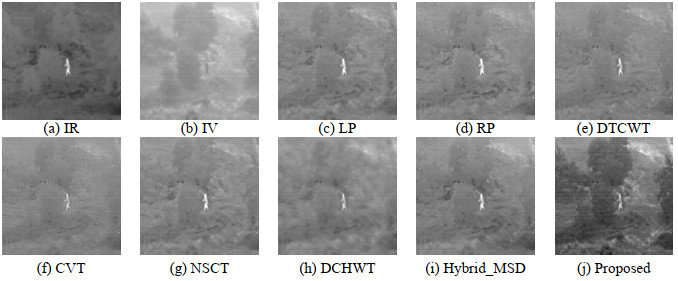

    图  6   Tree的融合结果

    Figure  6.   Fusion results of Tree

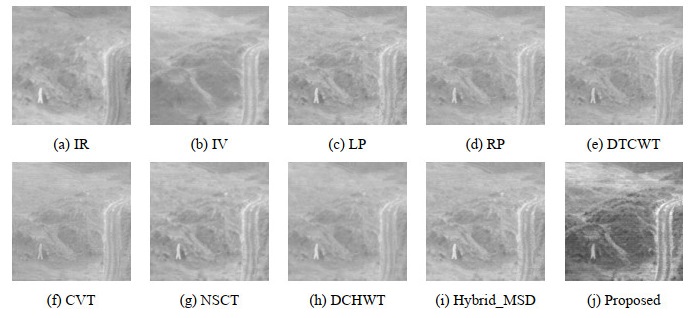

    图  7   Duine的融合结果

    Figure  7.   Fusion results of Duine

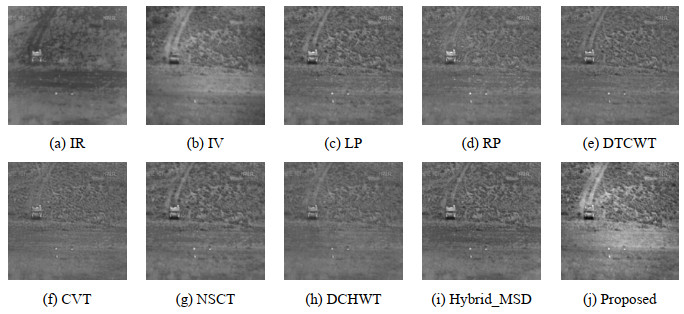

    图  8   APC_4的融合结果

    Figure  8.   Fusion results of APC_4

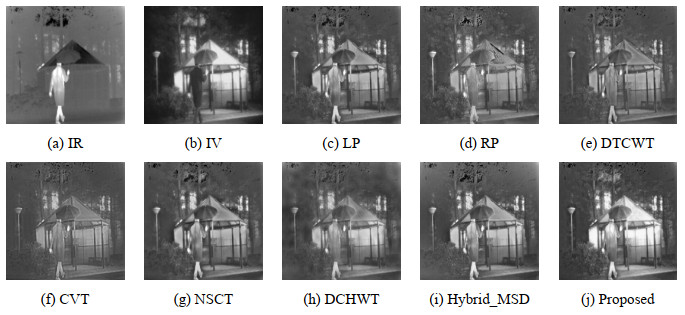

    图  9   Kaptein_1654的融合结果

    Figure  9.   Fusion results of Kaptein_1654

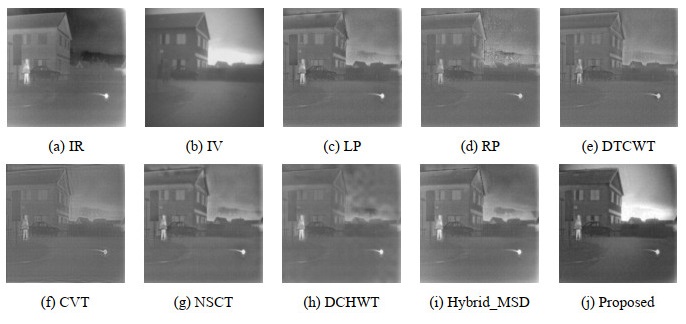

    图  10   Movie_18的融合结果

    Figure  10.   Fusion results of Movie_18

    表  1   Nato_camp客观评价结果

    Table  1   Objective evaluation results of Nato_camp

    Methods IE SF MI AG SD
    LP 6.6022 13.9059 1.8726 5.6680 28.3882
    RP 6.5073 14.7712 1.7414 5.8658 27.3435
    DTCWT 6.4292 12.8851 1.8237 5.1054 25.6576
    CVT 6.3256 11.8559 1.7603 4.7871 24.0154
    NSCT 6.6369 13.5828 1.8622 5.6284 28.6006
    DCHWT 6.3231 11.0041 1.7605 4.4255 25.8427
    Hybrid_MSD 6.7020 15.1560 2.0825 6.0049 29.1284
    Proposed 7.0235 14.8216 2.6280 6.2154 37.1931
    下载: 导出CSV

    表  2   Tree评价结果

    Table  2   Objective evaluation results of Tree

    Methods IE SF MI AG SD
    LP 5.8484 7.7347 1.6911 3.0154 14.7225
    RP 5.8788 9.0936 1.5948 3.2999 15.1486
    DTCWT 5.7484 7.1703 1.6836 2.7127 13.5645
    CVT 5.7172 6.8121 1.6988 2.5939 13.0307
    NSCT 5.8498 7.4456 1.6643 2.9577 14.6721
    DCHWT 6.0325 6.1470 1.5695 2.4196 16.3405
    Hybrid_MSD 6.2954 8.5220 1.8939 3.2627 20.2859
    Proposed 6.8678 11.3701 3.1874 4.8995 31.3029
    下载: 导出CSV

    表  3   Duine客观评价结果

    Table  3   Objective evaluation results of Duine

    Methods IE SF MI AG SD
    LP 5.9780 7.4565 1.5175 3.3497 15.4549
    RP 5.8923 6.9660 1.5174 3.0050 14.5825
    DTCWT 5.8808 6.7566 1.5059 3.0241 14.4632
    CVT 5.8322 6.5233 1.4829 2.9103 14.0198
    NSCT 5.9806 7.0812 1.5181 3.2809 15.5069
    DCHWT 5.8015 5.7144 1.5240 2.5810 13.6918
    Hybrid_MSD 5.9472 8.2933 1.5553 3.6047 15.2660
    Proposed 7.1126 13.2301 3.1155 6.1093 35.0350
    下载: 导出CSV

    表  4   APC_4客观评价结果

    Table  4   Objective evaluation results of APC_4

    Methods IE SF MI AG SD
    LP 5.8574 12.7384 0.9065 5.5624 14.5848
    RP 5.6555 12.4937 0.7502 5.0838 12.9853
    DTCWT 5.6766 11.7014 0.8259 5.0618 12.8683
    CVT 5.5498 11.3298 0.7902 4.8656 11.6973
    NSCT 5.8743 12.1900 0.8733 5.4444 14.7461
    DCHWT 5.5262 9.7761 0.8671 4.2252 11.4534
    Hybrid_MSD 5.9514 14.0328 1.0230 5.9508 15.5852
    Proposed 6.6951 16.5562 2.8247 7.5079 25.6268
    下载: 导出CSV

    表  5   Kaptein_1654客观评价结果

    Table  5   Objective evaluation results of Kaptein_1654

    Methods IE SF MI AG SD
    LP 6.6557 19.0519 2.2753 6.8009 36.8878
    RP 6.7122 19.7509 2.2324 6.9286 34.3867
    DTCWT 6.4858 17.9294 2.2036 6.3067 31.2040
    CVT 6.3880 16.3414 2.2711 5.6601 28.7014
    NSCT 6.6451 18.7667 2.2189 6.7824 35.7430
    DCHWT 6.7437 15.4424 2.2980 5.5617 36.3196
    Hybrid_MSD 6.8692 20.4999 2.1659 7.1597 37.6306
    Proposed 7.0479 20.6661 3.0611 7.7455 53.3902
    下载: 导出CSV

    表  6   Movie_18客观评价结果

    Table  6   Objective evaluation results of Movie_18

    Methods IE SF MI AG SD
    LP 5.9545 8.3646 1.7206 3.0967 17.9892
    RP 5.7520 9.0084 1.5003 3.1423 16.3032
    DTCWT 5.6640 7.8037 1.6294 2.8594 14.5863
    CVT 5.5991 7.6734 1.6439 2.8605 13.9172
    NSCT 5.8977 8.2244 1.6706 3.0956 17.1809
    DCHWT 5.5755 6.6402 1.6596 2.4455 15.0237
    Hybrid_MSD 6.2333 9.2791 2.3197 3.3676 21.1429
    Proposed 6.8108 10.0577 3.3102 3.7343 47.7950
    下载: 导出CSV
  • [1] 杨孙运, 奚峥皓, 王汉东, 等. 基于NSCT和最小化-局部平均梯度的图像融合[J]. 红外技术, 2021, 43(1): 13-20. http://hwjs.nvir.cn/article/id/144252d1-978c-4c1e-85ad-e0b8d5e03bf6

    YANG Sunyun, XI Zhenghao, WANG Handong, et al. Image fusion based on nsct and minimum-local mean gradient[J]. Infrared Technology, 2021, 43(1): 13-20. http://hwjs.nvir.cn/article/id/144252d1-978c-4c1e-85ad-e0b8d5e03bf6

    [2] 肖中杰. 基于NSCT红外与可见光图像融合算法优化研究[J]. 红外技术, 2017, 39(12): 1127-1130. http://hwjs.nvir.cn/article/id/hwjs201712010

    XIAO Zhongjie. Improved infrared and visible light image fusion algorithm based on NSCT[J]. Infrared Technology, 2017, 39(12): 1127-1130. http://hwjs.nvir.cn/article/id/hwjs201712010

    [3]

    ZHANG B, LU X, PEI H, et al. A fusion algorithm for infrared and visible images based on saliency analysis and non-subsampled Shearlet transform[J]. Infrared Physics & Technology, 2015, 73: 286-297.

    [4]

    ZHOU Z, WANG B, LI S, et al. Perceptual fusion of infrared and visible images through a hybrid multi-scale decomposition with Gaussian and bilateral filters[J]. Information Fusion, 2016, 30: 15-26. DOI: 10.1016/j.inffus.2015.11.003

    [5]

    MA J, YU W, LIANG P, et al. Fusion GAN: A generative adversarial network for infrared and visible image fusion[J]. Information Fusion, 2019, 48: 11-26. DOI: 10.1016/j.inffus.2018.09.004

    [6]

    ZHANG Y, ZHANG L, BAI X, et al. Infrared and visual image fusion through infrared feature extraction and visual information preservation[J]. Infrared Physics & Technology, 2017, 83: 227-237.

    [7]

    Mertens T, Kautz J, Reeth F V. Exposure fusion[C]//Proceedings of Pacific Conference on Computer Graphics and Applications, 2007: 382-390.

    [8]

    ZHANG Z, Blum R S. A categorization of multiscale-decomposition-based image fusion schemes with a performance study for a digital camera application[C]//Proc. IEEE, 1999, 87(8): 1315-1326.

    [9]

    Lewis J J, Callaghan R J O, Nikolov S G, et al. Pixel- and region-based image fusion with complex wavelets[J]. Inf. Fus., 2007, 8(2): 119-130. DOI: 10.1016/j.inffus.2005.09.006

    [10]

    Nencini F, Garzelli A, Baronti S, et al. Remote sensing image fusion using the curvelet transform[J]. Inf. Fus., 2007, 8(2): 143-156. DOI: 10.1016/j.inffus.2006.02.001

    [11]

    YANG S, WANG M, JIAO L, et al. Image fusion based on a new contourlet packet[J]. Inf. Fus., 2010, 11(2): 78-84. DOI: 10.1016/j.inffus.2009.05.001

    [12]

    Cunha A L, ZHOU J P, DO M N. The nonsubsampled Contourlet transform: theory, design, and applications [J]. IEEE Transactions on Image Processing, 2006, 15(10): 3089-3101. DOI: 10.1109/TIP.2006.877507

    [13] 郭明, 符拯, 奚晓梁. 基于局部能量的NSCT域红外与可见光图像融合算法[J]. 红外与激光工程, 2012, 41(8): 2229-2235.

    GUO Ming, FU Zheng, XI Xiaoliang. Novel fusion algorithm for infrared and visible images based on local energy in NSCT domain[J]. Infrared and Laser Engineering, 2012, 41(8): 2229-2235.

    [14]

    Cands E J, Donoho D L. Curvelets and curvilinear integrals[J]. J. Approximation Theor., 2001, 113(1): 59-90. DOI: 10.1006/jath.2001.3624

    [15]

    DO M N, Vetterli M. Contourlets: a directional multiresolution image representation[C]//Proceedings of IEEE International Conference on Image Processing, 2002, 1: I-357-I-360.

    [16]

    ZHAI Y, SHAH M. Visual attention detection in video se-quencesusing spatiotemporal cues[C]//Proceedings of the 14th ACM Conference on Multimedia, 2006: 815-824.

    [17]

    Achanta R, Hemami S, Estrada F, et al. Frequency-tuned salient region detection[C]// IEEE Conference on Computer Vision & Pattern Recognition, 2009: 1597-1604.

    [18] 叶坤涛, 李文, 舒蕾蕾, 等. 结合改进显著性检测与NSST的红外与可见光图像融合方法[J]. 红外技术, 2021, 43(12): 1212-1221. http://hwjs.nvir.cn/article/id/bfd9f932-e0bd-4669-b698-b02d42e31805

    YE Kuntao, LI Wen, SHU Leilei, LI Sheng. Infrared and visible image fusion method based on improved saliency detection and non-subsampled shearlet transform[J]. Infrared Technology, 2021, 43(12): 1212-1221. http://hwjs.nvir.cn/article/id/bfd9f932-e0bd-4669-b698-b02d42e31805

    [19] 唐中剑, 毛春. 基于显著导向的可见光与红外图像融合算法[J]. 太赫兹科学与电子信息学报, 2021, 19(1): 125-131.

    TANG Zhongjian, MAO Chun. Visible and infrared image fusion algorithm based on saliency guidance[J]. Journal of Terahertz Science and Electronic Information Technology, 2021, 19(1): 125-131.

    [20] 王惠琴, 吕佳芸, 张伟. 基于双边滤波-BM3D算法的GPR图像去噪[J]. 兰州理工大学学报, 2022, 48(1): 91-97.

    WANG Huiqin, LYU Jiayun, ZHANG Wei. GPR image denoising based on bilateral filtering BM3D algorithm[J]. Journal of Lanzhou University of Technology, 2022, 48(1): 91-97.

    [21]

    Edwin H Land. The retinex theory of color vision [J]. Scientific American, 1977, 237(6): 108-129. DOI: 10.1038/scientificamerican1277-108

    [22] 程铁栋, 卢晓亮, 易其文, 等. 一种结合单尺度Retinex与引导滤波的红外图像增强方法[J]. 红外技术, 2021, 43(11): 1081-1088. http://hwjs.nvir.cn/article/id/b49a0a09-e295-40e6-9736-24a58971206e

    CHENG Tiedong, LU Xiaoliang, YI Qiwen, et al. Research on infrared image enhancement method combined with single-scale retinex and guided image filter[J]. Infrared Technology, 2021, 43(11): 1081-1088. http://hwjs.nvir.cn/article/id/b49a0a09-e295-40e6-9736-24a58971206e

    [23] 翟海祥, 何嘉奇, 王正家, 等. 改进Retinex与多图像融合算法用于低照度图像增强[J]. 红外技术, 2021, 43(10): 987-993. http://hwjs.nvir.cn/article/id/23500140-4bab-40b3-9bef-282f14dc105e

    ZHAI Haixiang, HE Jiaqi, WANG Zhengjia, et al. Improved Retinex and multi-image fusion algorithm for low illumination image enhancemen[J]. Infrared Technology, 2021, 43(10): 987-993. http://hwjs.nvir.cn/article/id/23500140-4bab-40b3-9bef-282f14dc105e

    [24]

    LIU Y, LIU S, WANG Z. A general framework for image fusion based on multi-scale transform and sparse representation[J]. Information Fusion, 2015, 24: 147-167.

    [25]

    Kumar B. Multifocus and multispectral image fusion based on pixel significance using discrete cosine harmonic wavelet transform[J]. Signal, Image & Video Processing, 2013, 7: 1125-1143. DOI: 10.1007/s11760-012-0361-x

    [26]

    ZHOU Z, BO W, SUN L, et al. Perceptual fusion of infrared and visible images through a hybrid multi-scale decomposition with Gaussian and bilateral filters[J]. Information Fusion, 2016, 30: 15-26.

    [27]

    Toet Alexander. TNO image fusion dataset[EB/OL]. 2014, https://doi.org/10.6084/m9.figshare.1008029.v1.

    [28] 张小利, 李雄飞, 李军. 融合图像质量评价指标的相关性分析及性能评估[J]. 自动化学报, 2014, 40(2): 306-315.

    ZHANG Xiaoli, LI Xiongfei, LI Jun. Validation and correlation analysis of metrics for evaluating performance of image fusion[J]. Acta Automatica Sinica, 2014, 40(2): 306-315.
