Effect of Annealing on C-V Characteristics of InSb Metal-Insulator-Semiconductor Devices

  • 摘要: 采用原子层沉积技术制备Al2O3薄膜作为InSb材料介电层,制备了MIS器件,研究了金属化后不同退火温度对界面特性的影响。利用C-V测试表征了MIS(metal-insulator-semiconductor)器件的界面特性,结果表明Al2O3介电层引入了表面固定正电荷,200℃和300℃退火处理可有效减小慢界面态密度,利用Terman法得到了禁带界面态密度分布,表明200℃退火可使禁带中央和导带附近的界面态密度显著减小。同时文章对C-V曲线滞回的原因进行了分析,认为Al2O3介电层中离界面较近的负体陷阱电荷是主要影响因素。实验证明了200℃~300℃的退火处理可有效改善InSb/Al2O3界面质量。
    Abstract: An Al2O3 film was prepared as a dielectric layer for an InSb material via the atomic layer deposition technique, the MIS device was developed, and the effects of annealing temperature on the post-metallization interfacial characteristics were investigated. Moreover, the interface of the MIS device was characterized using the C-V test. The results indicate that the Al2O3 dielectric layer introduced surface-fixed positive charges, and annealing processing at 200 and 300℃ can effectively reduce the slowing density. Furthermore, Terman's method can be used to obtain the interface states density distribution. This indicates that 200℃ annealing can significantly decrease the interfacial density close to the center of the bandgap and the conduction band. Additionally, negative charges being trapped near the interface of the Al2O3 dielectric layer is found to be the main cause of C-V curve hysteresis. Experiments prove that an annealing process at 200℃−300℃ can effectively improve the InSb/Al2O3 interface quality.
  • 框架式稳定平台系统近年来发展迅速,广泛应用于飞行器上的目标探测系统、精确制导武器的导引系统等。三自由度框架式红外稳定平台实现惯性空间稳定和对目标跟踪的同时,还可以直接测量制导系统所需的视线角速度信息[1]。三自由度稳定平台在结构上由3个单轴运动框架复合而成,机械装配中产生的装调误差造成框架轴系偏差[2-3]、红外探测器位姿偏差以及陀螺敏感轴的交叉耦合[4-5],使得基座角运动的耦合更加复杂[6],对测量视线角速度带来不利的影响。

    文献[7]研究了仅陀螺敏感轴交叉耦合情况下视线角速度的计算。所得结果是在框架轴系正交的假设下得到的。而实际系统中框架的装配必然会存在一定装调误差。本文系统研究了框架、陀螺和红外探测器均存在装调误差时,三自由度框架式红外视线角速度的计算方法,建立基于三轴稳定平台的轴系偏差的数学模型,分析了装调误差对视线角速度计算的影响,并进行仿真验证。

    三自由度框架式红外稳定平台系统的示意图如图 1。图中,O-XbYbZb表示载体坐标系。载体坐标系的原点取为稳定平台回转中心且坐标系和载体固连。

    图  1  稳定平台系统示意图
    Figure  1.  Schematic diagram of stabilized platform system

    框架式红外稳定平台系统一般将探测成像系统和速率陀螺安装在稳定平台上,稳定平台固定在内环框架上,成为内环框架的负载。内环框架和稳定平台组成内环本体组合,通过内环框架转轴固定在中环框架上,成为中环框架的负载。中环框架和内环本体组合通过中环框架转轴固定在外环框架上,成为外环框架的负载。外环框架转轴架固定在红外稳定平台的载体上。外环框架相对载体可以做滚转运动;外环框架处于零位时,中环框架相对载体可以做偏航运动;外环框架和中环框架处于零位时,内环框架相对载体可以做俯仰运动。通过内环、中环、外环3个框架的运动合成,可以实现稳定平台在惯性空间中绕回转中心转动。

    针对三自由度红外稳定平台的结构特点,除了前面定义的载体坐标系O-XbYbZb,再建立外环坐标系O-XoYoZo、中环坐标系O-XmYmZm、平台坐标系O-XpYpZp和探测坐标系O-XdYdZd。这4个坐标系原点均为稳定平台回转中心,其中,外环坐标系X轴和外环框架转轴固连;中环坐标系Y轴与中环框架转轴固连;平台坐标系Z轴和内环框架转轴固连;探测坐标系和探测器光敏面固连,其X轴对应光敏面的中垂线(即探测成像系统光轴),Y轴和Z轴分别对应探测器光敏面的行和列。

    在设计的理想状态下,探测成像系统光轴与内环框架转轴、内环框架转轴与中环框架转轴、中环框架转轴与外环框架转轴应分别正交,而外环框架转轴和载体纵轴完全重合。探测坐标系和平台坐标系重合且各框架处于零位时,4个坐标系和载体坐标系重合。记外环框架角为φw,中环框架角为φz,内环框架角为φn,角度正负按右手规则确定,那么各坐标系相互间的变换关系如图 2所示。

    图  2  4个坐标系之间的变换关系
    Figure  2.  Transformation of four coordinate systems

    实际装配时,框架轴系不可能做到零误差。本文描述轴系装调误差的参数为α1β1α2β2α3β3α4β4γ4。其中,α1为外环框架转轴在载体坐标系XOZ面的投影与载体系X轴的夹角;β1为外环框架转轴与载体系XOZ面的夹角;α2为中环框架转轴在外环坐标系YOZ面的投影与外环系Y轴的夹角;β2为中环框架转轴与载体系YOZ面的夹角;α3为内环框架转轴在中环坐标系XOZ面的投影与中环系Z轴的夹角;β3为内环框架转轴与中环系β3面的夹角;α4为探测器光敏面中垂线在平台系XOZ面的投影与平台系X轴的夹角;β4为光敏面中垂线与平台系XOZ面的夹角;γ4α4β4一起构成一组平台系到探测系的欧拉角。角度正负号按右手规则确定。当这些装调误差存在时,各坐标系相互间的变换关系如图 3所示。

    图  3  框架轴系偏差时各坐标系之间的变换关系
    Figure  3.  Transformation of coordinate systems with axis system deviation

    当稳定跟踪目标时,探测成像系统光轴和视线重合,那么视线角速度$\dot{q}$近似为光轴在惯性空间中转动的角速度在探测系YOZ面的投影。由于探测成像系统是固连在稳定平台上的,所以光轴在惯性空间中转动的角速度也是平台转动的角速度$\tilde{\omega }$。为了简化分析,本文假设载体不动,并定义如下矩阵函数:

    $$ {\mathit{\boldsymbol{T}}_x}(\phi ) = \left[ {\begin{array}{*{20}{c}} 1&0&0\\ 0&{\cos \phi }&{ - \sin \phi }\\ 0&{\sin \phi }&{\cos \phi } \end{array}} \right], $$
    $$ {\mathit{\boldsymbol{T}}_y}(\phi ) = \left[ {\begin{array}{*{20}{c}} {\cos \phi }&0&{\sin \phi }\\ 0&1&0\\ { - \sin \phi }&0&{\cos \phi } \end{array}} \right], $$
    $$ {\mathit{\boldsymbol{T}}_z}(\phi ) = \left[ {\begin{array}{*{20}{c}} {\cos \phi }&{ - \sin \phi }&0\\ {\sin \phi }&{\cos \phi }&0\\ 0&0&1 \end{array}} \right]。 $$

    当存在轴系偏差时,各坐标系之间按图 3的方式进行变换。此时在惯性空间中,平台转动的角速度$\tilde \omega $在探测系中的投影为:

    $$ \begin{array}{*{20}{c}} {\left[ {\begin{array}{*{20}{c}} {{{\tilde \omega }_{{\rm{d}}x}}}\\ {{{\tilde \omega }_{{\rm{d}}y}}}\\ {{{\tilde \omega }_{{\rm{d}}z}}} \end{array}} \right] = \\T_x^{ - 1}({\gamma _4})T_z^{ - 1}({\beta _4})T_y^{ - 1}({\alpha _4})\left( {\left[ {\begin{array}{*{20}{c}} 0\\ 0\\ {{\omega _{\rm{n}}}} \end{array}} \right] + T_z^{ - 1}({\phi _{\rm{n}}})T_x^{ - 1}({\beta _3})T_y^{ - 1}({\alpha _3})\left( {\left[ {\begin{array}{*{20}{c}} 0\\ {{\omega _z}}\\ 0 \end{array}} \right] + T_y^{ - 1}({\phi _z})T_z^{ - 1}({\beta _2})T_x^{ - 1}({\alpha _2})\left[ {\begin{array}{*{20}{c}} {{\omega _w}}\\ 0\\ 0 \end{array}} \right]} \right)} \right)}\\ { = {A_{\tilde \omega }}({\phi _z}, \, {\phi _{\rm{n}}}, \, {\alpha _2}, \, {\beta _2}, \, {\alpha _3}, \, {\beta _3}, \, {\alpha _4}, \, {\beta _4}, {\gamma _4})\left[ {\begin{array}{*{20}{c}} {{\omega _{\rm{w}}}}\\ {{\omega _{\rm{z}}}}\\ {{\omega _{\rm{n}}}} \end{array}} \right]} \end{array} $$ (1)

    式中:φn为内环框架角;φz为中环框架角;ωn是位标器内环框架转动的角速度,其方向沿平台坐标系的Z轴;ωz是位标器中环框架转动的角速度,其方向沿中环坐标系的Y轴。ωw是位标器外环框架转动的角速度,其方向沿外环坐标系的X轴。于是按本文中对视线角速度$\dot q$的近似,其在探测系中为:

    $$ \left[ {\begin{array}{*{20}{c}} {{{\dot q}_{{\rm{d}}x}}}\\ {{{\dot q}_{{\rm{d}}y}}}\\ {{{\dot q}_{{\rm{d}}z}}} \end{array}} \right] = \left[ {\begin{array}{*{20}{c}} 0&0&0\\ 0&1&0\\ 0&0&1 \end{array}} \right]\left[ {\begin{array}{*{20}{c}} {{{\tilde \omega }_{{\rm{d}}x}}}\\ {{{\tilde \omega }_{{\rm{d}}y}}}\\ {{{\tilde \omega }_{{\rm{d}}z}}} \end{array}} \right] = {\mathit{\boldsymbol{A}}_{\dot q}}({\phi _{\rm{z}}}, \, {\phi _{\rm{n}}}, \, {\alpha _2}, \, {\beta _2}, \, {\alpha _3}, \, {\beta _3}, \, {\alpha _4}, \, {\beta _4}, {\gamma _4})\left[ {\begin{array}{*{20}{c}} {{\omega _{\rm{w}}}}\\ {{\omega _{\rm{z}}}}\\ {{\omega _{\rm{n}}}} \end{array}} \right] $$ (2)

    式中:${\mathit{\boldsymbol{A}}_{\dot q}} = \left[ {\begin{array}{*{20}{c}} 0&0&0\\ 0&1&0\\ 0&0&1 \end{array}} \right]{\mathit{\boldsymbol{A}}_{\bar \omega }}$。

    对于三自由度框架式红外稳定平台系统,稳定平台上正交安装了偏航/俯仰陀螺分别测量平台相对惯性空间的偏航/俯仰角速度;外环框架上安装有外环陀螺,可以测量外框架相对惯性空间的滚转角速度。理想情况下,稳定平台偏航/俯仰陀螺的敏感轴分别平行于平台坐标系的Y轴和Z轴,外环陀螺敏感轴与外环坐标系X轴平行。这里仍用第2章轴系偏差建模的方法描述陀螺的装配误差,记误差参数为α5β5α6β6α7β7。其中,α5为外环陀螺敏感轴在外环系XOZ面的投影与外环系X轴的夹角;β5为外环陀螺敏感轴与外环系XOZ面的夹角;α6为中环陀螺敏感轴在平台系YOZ面的投影与平台系Y轴的夹角;β6为中环陀螺敏感轴与平台系YOZ面的夹角;α7为内环陀螺敏感轴在平台系XOZ面的投影与平台系Z轴的夹角;β7为内环陀螺敏感轴与平台系XOZ面的夹角。角度正负号按右手规则确定。那么在考虑轴系偏差情形下,陀螺的输出和外、中、内环框架的角速度满足下式:

    $$ \begin{array}{*{20}{c}} {\left[ {\begin{array}{*{20}{c}} {{{\hat \omega }_{\rm{w}}}}\\ {{{\hat \omega }_{\rm{z}}}}\\ {{{\hat \omega }_{\rm{n}}}} \end{array}} \right] = \left[ {\begin{array}{*{20}{c}} {\cos {\alpha _5}\cos {\beta _5}}&{\sin {\beta _5}}&{ - \sin {\alpha _5}\cos {\beta _5}}\\ 0&0&0\\ 0&0&0 \end{array}} \right]\left[ {\begin{array}{*{20}{c}} {{\omega _{\rm{w}}}}\\ 0\\ 0 \end{array}} \right] + \left[ {\begin{array}{*{20}{c}} 0&0&0\\ { - \sin {\beta _6}}&{\cos {\alpha _6}\cos {\beta _6}}&{\sin {\alpha _6}\cos {\beta _6}}\\ {\sin {\alpha _7}\cos {\beta _7}}&{ - \sin {\beta _7}}&{\cos {\alpha _7}\cos {\beta _7}} \end{array}} \right]}\\ {\quad \quad \quad \cdot \left( {\left[ {\begin{array}{*{20}{c}} 0\\ 0\\ {{\omega _{\rm{n}}}} \end{array}} \right] + T_z^{ - 1}({\phi _n})T_x^{ - 1}({\beta _3})T_y^{ - 1}({\alpha _3})\left( {\left[ {\begin{array}{*{20}{c}} 0\\ {{\omega _z}}\\ 0 \end{array}} \right] + T_y^{ - 1}({\phi _z})T_z^{ - 1}({\beta _2})T_x^{ - 1}({\alpha _2})\left[ {\begin{array}{*{20}{c}} {{\omega _{\rm{w}}}}\\ 0\\ 0 \end{array}} \right]} \right)} \right)}\\ { = {\mathit{\boldsymbol{A}}_g}({\phi _z}, \, {\phi _n}, \, \, {\alpha _2}, \, {\beta _2}, \, {\alpha _3}, \, {\beta _3}, \, {\alpha _5}, \, {\beta _5}, \, {\alpha _6}, \, {\beta _6}, \, {\alpha _7}, \, {\beta _7})\left[ {\begin{array}{*{20}{c}} {{\omega _{\rm{w}}}}\\ {{\omega _{\rm{z}}}}\\ {{\omega _{\rm{n}}}} \end{array}} \right]} \end{array} $$ (3)

    式中:${\hat \omega _{\rm{w}}}$是外环陀螺的输出;${\hat \omega _{\rm{z}}}$是偏航陀螺的输出;${\hat \omega _{\rm{n}}}$是内环陀螺的输出。

    将式(3)代入式(2),得到视线角速度在探测坐标系中的测量计算公式为:

    $$ \left[ {\begin{array}{*{20}{c}} {{{\dot q}_{{\rm{d}}x}}}\\ {{{\dot q}_{{\rm{d}}y}}}\\ {{{\dot q}_{{\rm{d}}z}}} \end{array}} \right] = \mathit{\boldsymbol{T}}({\phi _z}, \, {\phi _n}, \, {\alpha _2}, \, {\beta _2}, \, {\alpha _3}, \, {\beta _3}, \, {\alpha _4}, \, {\beta _4}, {\gamma _4}\, {\alpha _5}, \, {\beta _5}, \, {\alpha _6}, \, {\beta _6}, \, {\alpha _7}, \, {\beta _7})\left[ {\begin{array}{*{20}{c}} {{{\hat \omega }_{\rm{w}}}}\\ {{{\hat \omega }_{\rm{z}}}}\\ {{{\hat \omega }_{\rm{n}}}} \end{array}} \right] $$ (4)

    式中:$\mathit{\boldsymbol{T}} = {A_{\dot q}}A_g^{ - 1}$。

    最后将其按图 3的坐标变换关系可得视线角速度在载体系中的测量计算公式为:

    $$ \left[ {\begin{array}{*{20}{c}} {{{\dot q}_{bx}}}\\ {{{\dot q}_{by}}}\\ {{{\dot q}_{bz}}} \end{array}} \right] = {\mathit{\boldsymbol{T}}_y}({\alpha _1}){\mathit{\boldsymbol{T}}_z}({\beta _1}){\mathit{\boldsymbol{T}}_x}({\phi _w}){\mathit{\boldsymbol{T}}_x}({\alpha _2}){\mathit{\boldsymbol{T}}_z}({\beta _2}){\mathit{\boldsymbol{T}}_y}({\phi _z}){\mathit{\boldsymbol{T}}_y}({\alpha _3}){\mathit{\boldsymbol{T}}_x}({\beta _3}){\mathit{\boldsymbol{T}}_z}({\phi _n}){\mathit{\boldsymbol{T}}_y}({\alpha _4}){\mathit{\boldsymbol{T}}_z}({\beta _4}){\mathit{\boldsymbol{T}}_x}({\gamma _4})\mathit{\boldsymbol{T}}\left[ {\begin{array}{*{20}{c}} {{{\hat \omega }_{\rm{w}}}}\\ {{{\hat \omega }_{\rm{z}}}}\\ {{{\hat \omega }_{\rm{n}}}} \end{array}} \right] $$ (5)

    当各误差参数都取零时,式(4)即蜕化成:

    $$ \left[ {\begin{array}{*{20}{c}} {{{\dot q}_{{\rm{d}}x}}}\\ {{{\dot q}_{{\rm{d}}y}}}\\ {{{\dot q}_{{\rm{d}}z}}} \end{array}} \right] = \left[ {\begin{array}{*{20}{c}} 0&0&0\\ 0&1&0\\ 0&0&1 \end{array}} \right]\left[ {\begin{array}{*{20}{c}} {{{\hat \omega }_{\rm{w}}}}\\ {{{\hat \omega }_{\rm{z}}}}\\ {{{\hat \omega }_{\rm{n}}}} \end{array}} \right] $$ (6)

    将其坐标变换到载体系可得:

    $$ \left[ {\begin{array}{*{20}{c}} {{{\dot q}_{bx}}}\\ {{{\dot q}_{by}}}\\ {{{\dot q}_{bz}}} \end{array}} \right] = {\mathit{\boldsymbol{T}}_x}({\phi _w}){\mathit{\boldsymbol{T}}_y}({\phi _z}){\mathit{\boldsymbol{T}}_z}({\phi _{\rm{n}}})\left[ {\begin{array}{*{20}{c}} 0\\ {{{\hat \omega }_{\rm{z}}}}\\ {{{\hat \omega }_{\rm{n}}}} \end{array}} \right] $$ (7)

    也即理想情况下,三自由度框架式红外稳定平台系统稳定跟踪目标时,稳定平台上正交安装的偏航/俯仰陀螺可以直接测量出视线角速度。特别当框架轴系误差参数取零时,式(4)即蜕化成文献[7]中的结果。因此,式(4)也可以认为是对装调误差进行补偿,而且较文献[7]中的结果更具有一般性。

    对三自由度框架式红外稳定平台系统进行视线角速度测量试验。试验中载体静止,目标转台做30°/s匀速运动。记录稳定跟踪目标时的陀螺输出和框架角输出,如图 4图 5所示。

    图  4  陀螺的输出
    Figure  4.  Outputs of gyroscopes
    图  5  框架角曲线
    Figure  5.  Curves of frame angles

    用实测数据按第3章的计算公式进行离线仿真。仿真时,设置4种条件:忽略所有误差、忽略陀螺安装误差、忽略框架轴系误差和综合考虑各装调误差,具体误差参数如表 1所示。

    表  1  装调误差参数设置
    Table  1.  Parameters setting of installation errors
    Axis system deviation /° Alignment error of gyros/°
    (α1, β1) (α2, β2) (α3, β3) (α4, β4, γ4) (α5, β5) (α6, β6) (α7, β7)
    1 (0, 0) (0, 0) (0, 0) (0, 0, 0) (0, 0) (0, 0) (0, 0)
    2 (0, -0.02) (0.02, 0.1) (-0.03, 0) (0.03, 0.08, 2.5) (0, 0) (0, 0) (0, 0)
    3 (0, 0) (0, 0) (0, 0) (0, 0, 0) (-0.05, 0.04) (0.03, -0.4) (-0.02, 0.1)
    4 (0, -0.02) (0.02, 0.1) (-0.03, 0) (0.03, 0.08, 2.5) (-0.05, 0.04) (0.03, -0.4) (-0.02, 0.1)
    下载: 导出CSV
    | 显示表格

    图 6给出了4种情况下的视线角速度曲线,其中实线表示忽略所有误差测量得到的结果,点划线是忽略陀螺安装误差的结果,长虚线是忽略框架轴系误差的结果,带“+”实线是综合考虑各装调误差得到的结果。图 7图 6的局部放大。

    图  6  仿真结果比较图
    Figure  6.  Comparison with simulation results (solid line shows the result of neglecting all errors; dash dot line shows the result of neglecting alignment error of gyros; dash line shows the result of neglecting axis system deviation; solid line with "+" shows the result of considering all errors)
    图  7  仿真结果比较(局部放大)
    Figure  7.  Comparison with simulation results(part magnified)

    仿真试验结果表明,对装调误差进行补偿,可以提高视线角速度测量的精度。忽略装调误差时,测量计算的视线角速度较理论值最大偏差为4.08°/s;仅对框架轴系误差补偿时,视线角速度最大偏差减小到2.53°/s;仅对陀螺安装误差时,视线角速度最大偏差减小到1.49°/s;综合考虑各装调误差进行补偿,视线角速度最大偏差进一步减小到1.18°/s。总体来看,陀螺敏感轴交叉耦合对视线角速度精度的影响较框架轴系误差更显著。

    本文系统研究了框架和陀螺均存在装调误差时,三自由度框架式红外视线角速度的计算方法,并进行仿真分析。结果表明,在计算视线角速度时如果对误差进行补偿,可以提高视线角速度的测量精度。在提高线角速度测量精度方面,补偿陀螺敏感轴交叉耦合的效果比补偿框架轴系偏差更显著。所以陀螺敏感轴交叉耦合对视线角速度的影响在各装调误差中最大。此结果对新型框架式稳定平台系统总体设计时的误差指标分配有重要的参考价值。

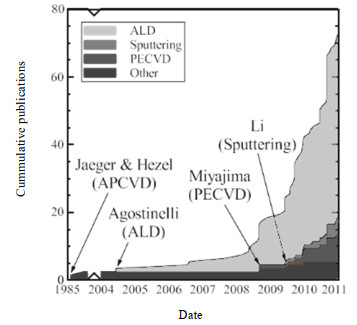

  • 图  1   有关使用不同沉积方式制备Al2O3作为光伏器件钝化层的文献的累计数量[7]

    Figure  1.   Cumulative count of literatures relating primarily to Al2O3 for surface passivation of photovoltaic devices, divided by the deposition method employed[7]

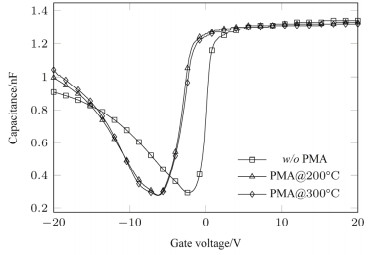

    图  2   不同退火温度的C-V特性

    Figure  2.   C-V characteristics at different annealing temperature

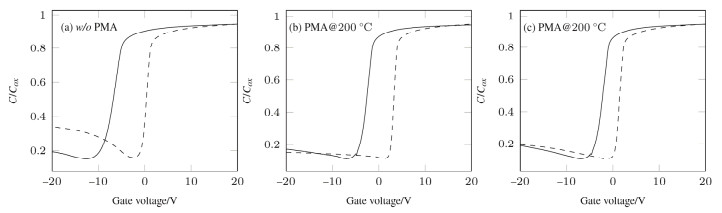

    图  3   不同退火温度下C-V曲线的滞回特性(实线表示从反型区开始扫描,虚线表示从积累区开始扫描)

    Figure  3.   Hysteresis C-V curves at different annealing temperature (Solid line denotes scanning from the inversion region, dotted line denotes scanning from the accumulation region)

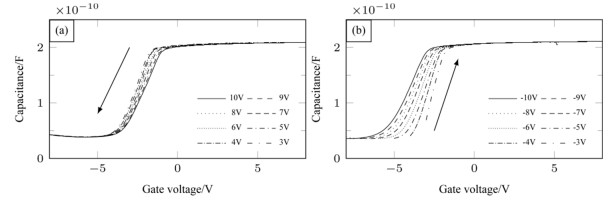

    图  4   不同扫描方向和起始偏压的C-V曲线:(a) 从积累区开始扫描;(b) 从反型区开始扫描

    Figure  4.   C-V curves with different scanning directions and initial bias: (a) Scan from the accumulation region; (b) Scan from the inversion region

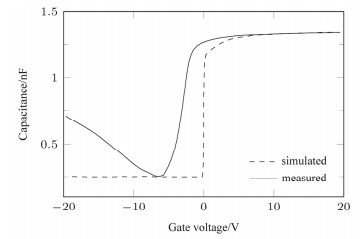

    图  5   高频C-V曲线的测量值和模拟值

    Figure  5.   Measured and simulated high frequency C-V curves

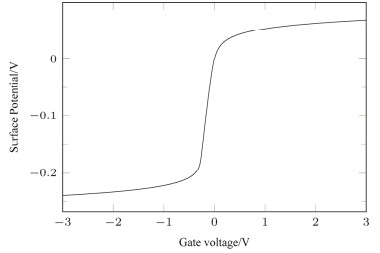

    图  6   理想栅电压与表面势的关系曲线

    Figure  6.   Ideal relationship curve of gate voltage and surface potential

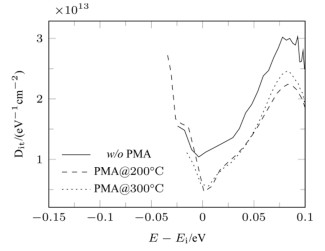

    图  7   界面态密度在禁带中的分布(相对于本征费米能级Ei

    Figure  7.   Interface state density as a function of energy in the bandgap(relative to the intrinsic Fermi level Ei)

    表  1   样品对应的退火条件

    Table  1   Annealing conditions corresponding to the sample

    Sample Annealing conditions
    #1 Without annealing(w/o PMA)
    #2 200℃, 5 min(PMA@200℃)
    #3 300℃, 5 min(PMA@300℃)
    下载: 导出CSV

    表  2   不同退火条件的平带电压及对应的固定电荷的大小

    Table  2   Flat band voltage and fixed surface charge density at different annealing conditions

    w/o PMA PMA
    @200℃
    PMA
    @300℃
    VFB/V 0.82 −3.2 −3
    Qf /cm−2 −8.4716×1011 2.8823×1012 2.7466×1012
    下载: 导出CSV

    表  3   不同退火条件的滞回电压及慢界面态密度

    Table  3   Voltage hysteresis and slow interface states density at different annealing conditions

    w/o PMA PMA
    @200℃
    PMA
    @300℃
    VFB/V 6.75 5.8 3.6
    Ntrap/cm−2 4.2×1012 3.6×1012 2.2×1012
    下载: 导出CSV
