基于能量分割的空间域图像融合算法研究

王新赛; 冯小二; 李明明

基于能量分割的空间域图像融合算法研究

陆军炮兵防空兵学院(郑州校区), 河南郑州 450052

详细信息

作者简介:
王新赛（1963-），男，江苏睢宁人，教授，博士，研究方向为光电成像、模式识别。E-mail: wangxsai@126.com

中图分类号: TP391.41
计量
- 文章访问数: 343
- HTML全文浏览量: 63
- PDF下载量: 22
- 被引次数: 0
出版历程
- 收稿日期: 2020-08-24
- 修回日期: 2020-09-28
- 刊出日期: 2022-07-20

Research on Spatial Domain Image Fusion Algorithm Based on Energy Segmentation

Army Academy of Artillery and Air Defense Force Zhengzhou Campus, Zhengzhou 450052, China

摘要

摘要: 针对空间域图像融合存在不同图源差异性信息提取、融合权重选取困难等问题，提出了一种新的空间域图像融合算法。利用矩阵相似的基本原理，对红外图像矩阵进行对角化变换，计算可见光图像矩阵在主要特征向量上的映射，采用加权融合的方法处理特征值矩阵，对融合矩阵进行对角化逆变换重构融合图像。实验结果表明，算法在充分保留源图像有效信息的同时，融合图像的整体灰度得到了明显的改善，具有良好的图像质量评估指数和更加优秀的视觉效果。
- 空间域 /
- 对角化 /
- 特征向量 /
- 图像融合 /
- 质量评估
Abstract: To address the problems of image fusion in the spatial domain, such as the extraction of different image sources, and challenges in selecting fusion weights, a new spatial-domain image-fusion algorithm is proposed. Using the basic principle of matrix similarity, the infrared image matrix is diagonally transformed and the visible light image matrix is mapped onto the main eigenvectors. Then, the weighted fusion method is used to process the eigenvalue matrix and the fusion matrix is diagonalized as an inverse-transformed and reconstructed fusion image. The experimental results show that the algorithm fully retains the effective information of the source image; moreover, the overall grayscale of the fused image is significantly improved. Thus, the algorithm offers a strong image quality evaluation index and better visual effects.
- spatial domain /
- diagonalization /
- feature vector /
- image fusion /
- quality evaluation

HTML全文

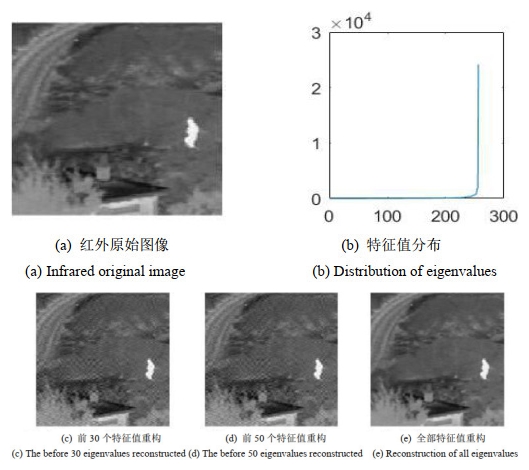

图 1 矩阵对角化后特征值重构效果图

Figure 1. Rendering of eigenvalue reconstruction after matrix diagonalization

下载: 全尺寸图片幻灯片

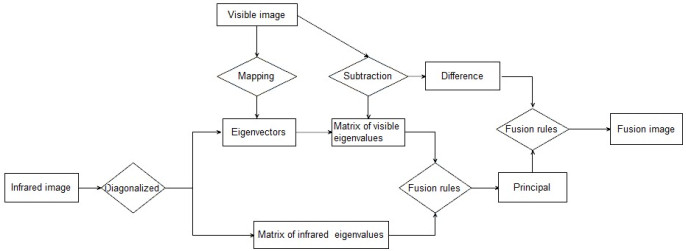

图 2 本文算法流程图

Figure 2. The algorithm flowchart of this article

下载: 全尺寸图片幻灯片

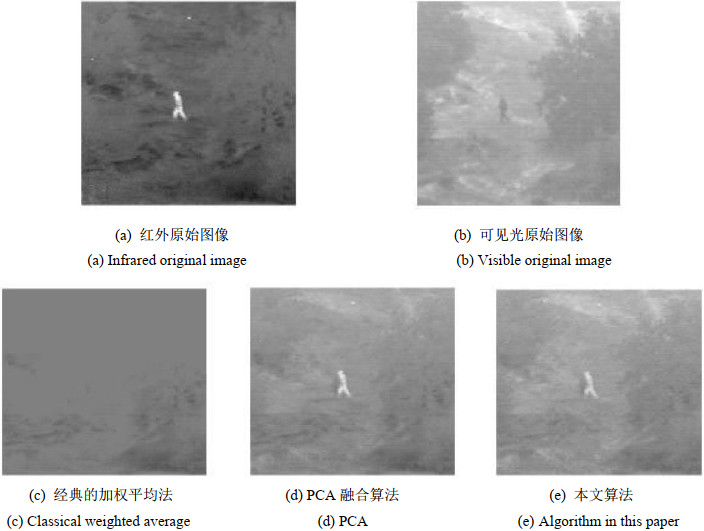

图 3 Camp系列图像的融合结果

Figure 3. The fusion images of camp series

下载: 全尺寸图片幻灯片

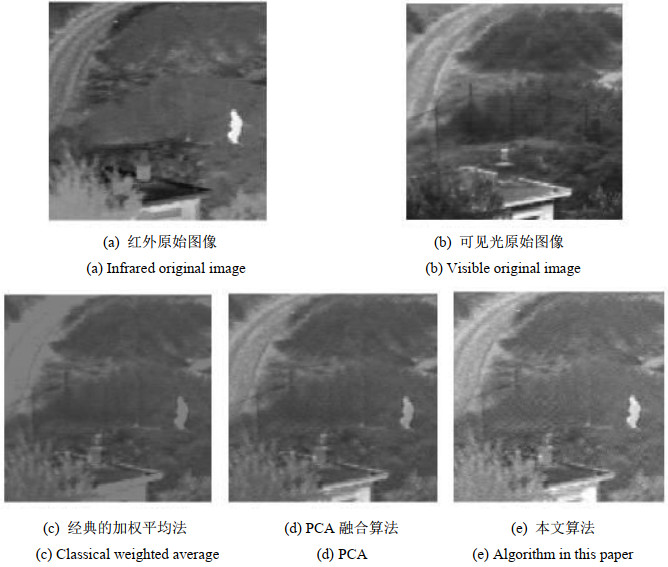

图 4 tree系列图像的融合结果

Figure 4. The fusion images of tree series

下载: 全尺寸图片幻灯片

表 1 不同算法客观评估指标值

Table 1. Values of objective evaluation index for different algorithms

Algorithm	Camp			Tree
Algorithm	IE	Mean	AG	IE	Mean	AG
Infrared	6.64	94.16	0.0288	6.09	97.76	0.0288
Visible	6.97	88.66	0.0288	6.24	169.29	0.0157
Classical weighted average	5.64	90.17	0.0173	2.57	124.50	0.0085
PCA	6.27	96.22	0.0220	5.95	133.52	0.0151
The article	7.05	121.24	0.0309	6.40	189.94	0.0182

下载: 导出CSV
