Research Progress on the Formation Mechanism and Prevention of Black Spot in Organic Light-Emitting Devices
-
摘要:
有机电致发光器件(OLEDs)由于具有主动发光、响应速度快、视角宽、且与柔性电子兼容等优秀特性而在显示行业广受关注,然而由于器件对水氧非常敏感,一旦跟水氧接触就会失效,其中黑点的形成是影响器件成品率的一大原因。相关研究提出了几种黑点形成机制但并没有特定模型,此外,黑点形成相对模糊且不可预测。为了减少和防止黑点的形成,本文总结了黑点的形成原因,讨论了黑点的形成机制,并给出了黑点预防措施。
Abstract:Organic light-emitting devices (OLEDs) have attracted wide attention in the display industry owing to their excellent characteristics, such as active luminescence, fast response time, wide viewing angle, and compatibility with flexible electronics. Nevertheless, organic luminescent materials are vulnerable to environmental moisture and oxygen, and they fail once they come in contact with water and oxygen. The formation of black spots is one of the main factors affecting the product yields of these devices. Relevant studies have proposed several mechanisms for the formation of black spots; however, there is no specific model. In addition, current models of the formation of black spots are relatively vague and unpredictable. To reduce and prevent the formation of black spots, this study summarizes the causes of black spot formation, discusses the formation mechanism of black spots, and provides preventive measures.
-
0. 引言
旋转机械是指那些主要功能是由旋转运动来完成的机械设备[1],如电动机、发电机、柴油机、燃气轮机、蒸汽轮机、滚动轴承以及各种齿轮传动装置等机械设备。旋转机械在各行各业应用广泛、数量众多,通常是机械设备中的重要组成部件,旋转机械一旦发生故障将会造成不可估量的损失和影响,因此对于旋转机械的状态监测与故障诊断十分重要。
常用的监测与诊断技术主要有[2]:振动信号监测诊断技术、声信号监测诊断技术、温度信号监测诊断技术、润滑油的分析诊断技术、其他无损检测诊断技术。红外监测诊断技术是一种温度信号监测诊断技术,是利用红外技术了解和掌握设备的工作状态,早期发现故障并能预报故障发展趋势的监测诊断技术[3]。其优点在于成像评估、图像直观;非接触式、测温范围广;无需停机、高效评估;灵敏度、高分辨率[4],因此引起了国内外研究者的广泛兴趣。Tran等[5]利用红外热像仪采集旋转机械红外图像,通过二维经验模态分解进行聚类分析,可以准确地区分各种故障类型。孙富成等[6]利用红外热像仪采集变速箱两端轴承的红外热图像,通过二维经验模态分解与主成分分析法相结合进行图像融合,准确地诊断出轴承故障。
上述方法通过红外图像采集与分析来进行故障诊断,但未能实现智能化监测诊断。要实现智能化的旋转机械红外状态监测与故障诊断,第一步要准确识别红外图像中的各个旋转机械部件,分别对每个部件进行状态分析与故障诊断。而要智能识别旋转机械部件目标,则可以通过基于深度学习的目标检测算法来进行训练检测。
近几年,基于深度学习的目标检测算法迅猛发展,成为人工智能领域的研究热点之一。自2012年Krizhevsky等提出的深度卷积神经网络(Deep Convolutional Neural Networks,DCNN)AlexNet[7]在大规模视觉识别挑战赛(ImageNet Large Scale Visual Recognition Challenge,ILSVRC)[8]上实现了创纪录的图像分类准确度之后,许多计算机视觉应用领域都将研究重心放在了深度学习方法上,涌现了许多基于深度学习的目标检测算法,其中具有代表性的主要有R-CNN(Regions with Convolutional Neural Networks features)[9]、Fast R-CNN[10]、Faster R-CNN[11]、YOLO(You Only Look Once)v1[12]、SSD(Single Shot MultiBox Detector)[13]、YOLO v2[14]、Mask R-CNN[15]、YOLO v3[16]等,这些算法在机器人视觉、消费电子产品、安保、自动驾驶、人机交互、基于内容的图像检索、智能视频监控和增强现实[17-22]等领域都有广泛的应用,取得了较好的检测效果。
由于Faster R-CNN算法具有广泛的应用和较好的效果,本文将通过基于深度学习的Faster R-CNN目标检测算法对红外图像进行学习训练,使用训练完成的探测器来实现旋转机械红外图像部件智能识别,为旋转机械状态监测与故障诊断提供基础。
1. Faster R-CNN目标检测算法
Faster R-CNN是由Ross Girshick等人继2014年推出R-CNN,2015年推出Fast R-CNN之后推出的更快、更准的目标检测网络,其结构框架如图 1所示,包含4个关键模块,即Feature Extraction(特征提取网络)、Region Proposal Network(区域建议网络,简称RPN)、Classification(区域分类)、Regression(区域回归)。用一个神经网络将这4个模块结合起来,训练了一个端到端的网络。
图片输入Faster R-CNN网络后,首先由特征提取网络(常用一些预训练好的网络Alexnet[7]、Googlenet[23]、VGG[24]、Resnet[25]等)来提取特征图,然后在特征图上的每一个锚点上取多个候选的区域,并根据相应的比例将其映射到原始图像中;接着将这些候选的区域输入到区域建议网络(RPN)中,RPN网络对这些区域进行分类,确定这些区域是前景还是背景,同时对其进行初步回归,计算这些前景区域与真实目标之间的偏差值,然后做非极大值抑制,即根据分类的得分对这些区域进行排序;接着对这些不同大小的区域进行RoI pooling(区域池化)操作,输出固定大小的特征图;最后将其输入简单的检测网络中,然后利用卷积进行区域分类,同时进行区域回归,精确调整区域,从而输出最优目标区域及区域得分。
2. 实验分析
对于旋转机械的红外监测可以采用视频监控的模式,本文通过搭建一套由电动机、滚动轴承、联轴器、轴承座、齿轮箱、发电机组成的旋转机械实验台来进行研究分析,实验台结构如图 2所示。
在准确设置热像仪参数的条件下,采用笔记本电脑连接FLIR T650sc热像仪采集各个不同角度下旋转机械运行5~15 min的红外视频,采集不同角度下红外图像60张,以供深度学习算法进行学习训练和检测评估,部分图像数据如图 3所示。
2.1 单角度下旋转机械红外灰度图像目标识别
视频监控主要通过固定角度和自动旋转角度两种方式,首先我们选取一段10 min的单角度红外视频进行分析研究,分别间隔1 s、2 s、4 s、8 s从视频提取红外灰度图像600张、300张、150张、75张,图片尺寸均为640像素×480像素,使用Matlab中ImageLabel对图像中的各个旋转机械部件进行标记并生成标准数据集,然后使用目标探测网络Faster R-CNN进行学习训练,数据集中前80%的数据用于训练,后20%的数据为测试集用于检测评估。训练使用SUPERMICRO服务器,配置为Windows Server 2012系统、Intel(R)Xeon(R)CPU E5-2695 v4@2.10 GHz处理器、512 G内存、NVIDIA Tesla K80显卡。在相同训练参数设置下,4种不同数量数据集下训练完成的探测器对于单张测试图片的检测效果如图 4所示。
从图 4中可以看出4种探测器均能识别出旋转机械部件,但是不同的探测器检测出来的各部件的位置、大小稍微有一些差异。为了更准确地评估训练检测效果,使用召回率(Recall)、精确度(Precision)、平均精度(Average-Precision,AP)以及mAP(mean Average-Precision)、交并比(IoU,Intersection-over- Union)等指标对探测进行量化评估。
召回率即目标从包含目标的图像中被成功检测出来的比例,计算公式为:
$$\operatorname{Re} {\rm{call}} = \frac{{{\rm{TP}}}}{{{\rm{TP + FN}}}}$$ (1) 式中:TP(True Positives)代表目标识别正确的数量、FN(False Negatives)代表目标识别错误的数量。
精确度即检测到目标的图像中真正包含目标的比例,计算公式为:
$$\Pr {\rm{ecision}} = \frac{{{\rm{TP}}}}{{{\rm{TP + FP}}}}$$ (2) 式中:TP(True Positives)代表目标识别正确的数量、FP(False Positives)代表其他目标错误的识别为此目标的数量。
平均精度(AP)为Precision-Recall曲线下面的面积,其大小在[0, 1]区间,通常来说AP值越高,分类器越好。mAP指多个类别AP的平均值,是目标检测算法中最重要的一个指标。
交并比(IoU)指系统预测出来的目标区域与原来图片中标记的目标区域的重合程度,计算公式为:
$${\rm{IoU}} = \frac{{{\rm{Area}}(A) \cap {\rm{Area}}\left( B \right)}}{{{\rm{Area}}(A) \cup {\rm{Area}}\left( B \right)}}$$ (3) 式中:Area(A)表示原图中标记的目标区域;Area (B)表示探测器检测出来的目标区域。
使用测试集数据对4种探测器进行检验评估,可以得到不同数量数据集下网络训练及检测情况如表 1所示。
表 1 四种不同数量数据集下网络训练检测情况Table 1. Network training and detection situation under fourdifferent datasetsNumber of datasets Training time /s mAP IoU 75 303 1 0.8969 150 514 1 0.8836 300 990 1 0.9108 600 1846 1 0.8487 由表 1可以看出,训练集越大,训练时间越长;平均精度都为1,说明4种探测器均能准确识别旋转机械部件,但是识别的范围不尽相同,从交并比数据上可以看出探测器识别出的范围与真实目标范围的偏差程度,在提取300张数据集时检测评估交并比最大,说明该检测更准确,600张数据集的检测效果较差,说明相同数据量过大,反而出现过拟合现象。
2.2 单角度下旋转机械红外伪彩色图像目标识别
基于上面的分析,从10 min视频中提取300张图像具有较好的训练检测效果的图像,为此从相同红外视频中间隔2 s提取红外伪彩色图像300张、相同数据的红外灰度图像300张,图片尺寸均为640像素×480像素,同样使用Matlab中ImageLabel对图像中的各个旋转机械部件进行相同的位置标记并生成标准数据集,使用相同的目标探测网络Faster R-CNN进行学习训练,同样前80%的数据用于训练,后20%的数据用于检测评估,训练完成的探测器对于单张图片的检测结果如图 5所示。
为了更准确地评估不同图像类型下的训练检测效果,使用测试集数据进行检验评估,可以得到不同图像类型下网络训练检测情况如表 2所示。
表 2 不同图像类型下网络训练检测情况Table 2. Network training and detection situation under differentimage typesImage types Training time /s mAP IoU Gray image 990 1 0.9108 Pseudo color image 1067 1 0.8932 由表 2可以看出,两种图像的训练时间相差77 s,检测的平均精度一样,此外,灰度图像检测的目标区域交并比更高,检测效果更好。
2.3 多角度下旋转机械红外灰度图像目标识别
对于自动旋转型监控模式,可以通过不同角度下采集的红外视频和图像进行训练研究。由于灰度图像具有较好检测效果,因此本文从采集的多角度红外视频和图像中提取灰度图像1300张,选择其中的1000张图片作为训练集,剩余的300张图片作为测试集,图片尺寸均为640像素×480像素,同样使用Matlab中ImageLabel对训练集和测试集图片中的各个旋转机械部件进行标记,一共6个部件类型标签,并生成标准数据集,然后使用目标探测网络Faster R-CNN进行学习训练,在训练中选择不同的预训练网络Alexnet、VGG19、Googlenet、Resnet50等进行特征提取。在相同训练集、测试集,相同的参数设置下,不同预训练网络对于单张图片的检测效果如图 6所示。
由图 6可以看出4种探测器均能识别旋转机械部件,其中Alexnet预训练检测结果中联轴器(Coupling)的检测位置有明显偏差,其余基本能够检测出旋转机械部件。为了更准确地评估4种探测器的训练检测效果,使用测试集数据进行检验评估,可以得到不同预训练网络下的Precision- Recall曲线如图 7~图 10所示。
图 7中Alexnet预训练下6个目标平均检测精度(mAP)为0.9281,图 8中VGG19预训练下6个目标平均检测精度为0.9188,图 9中Googlenet预训练下6个目标平均检测精度为0.8735,图 10中Resnet50预训练下6个目标平均检测精度为0.9345,由mAP数据可以看出使用Resnet50作为预训练网络具有最佳的检测效果。
3. 结论
本文采用Faster R-CNN算法对旋转机械红外图像进行了训练和检测,实验表明,该方法可以应用于旋转机械红外目标检测,能够自动识别旋转机械部件。在单角度下通过不同间隔时间提取不同数量图片进行检测评估,得出单角度下10 min红外视频提取300张左右图片训练检测效果最佳。通过分析相同角度下红外灰度图像和红外伪彩色图像训练检测结果得知,使用红外灰度图像进行训练检测效果更佳。通过对比不同预训练网络下的目标检测效果得知,在Resnet50的预训练网络下,红外目标检测效果最佳。旋转机械红外目标识别主要是为旋转机械各部件智能故障诊断打下坚实基础,下一步对各部件的故障类别和故障程度进行智能判别,建立一套旋转机械故障监测诊断系统。
-

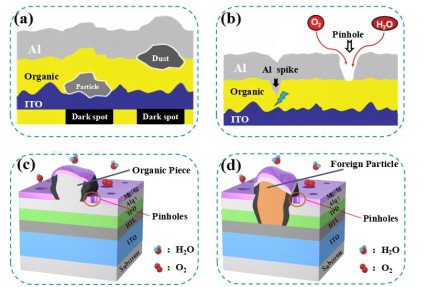

图 1 OLEDs中的颗粒与针孔:(a) 未刺破膜层的外部颗粒和灰尘[12];(b) 膜层中尖刺和针孔[12];(c) 已刺破膜层的有机颗粒[13-14];(d) 已刺破膜层的外来颗粒[13-14]
Figure 1. Particles and pinholes in OLEDs: (a) External particles and dust that have not punctured the film[12]; (b) Spikes and pinholes in the membrane[12]; (c) Organic particles that have punctured the membrane[13-14]; (d) Foreign particles that have punctured the membrane[13-14]

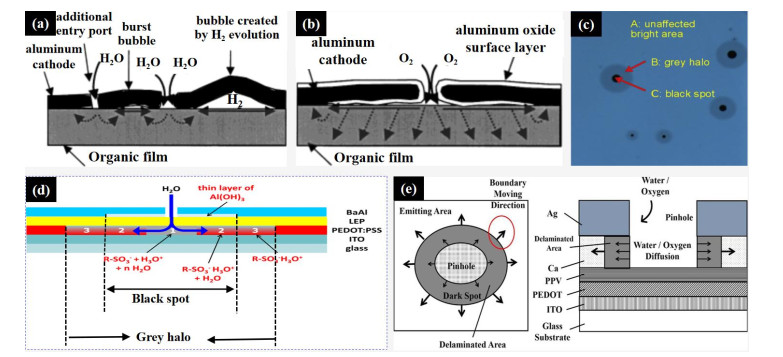

图 3 黑点在水氧下的生长机制和形貌:(a) OLEDs在水汽下工作时黑点形成的机理[20];(b) 纯氧环境和无偏压下的黑点生长机理[20];(c) 黑点及黑点周围灰色晕[23-24];(d) OLEDs与水相互作用过程[23-24];(e) 黑点在水氧下的生长机里[3, 14]
Figure 3. The growth mechanism of black spots under the action of water and oxygen and the morphology of black spots: (a) mechanism of dark spot formation during operation of an OLED underwater vapor atmosphere[20]; (b) dark spot growth mechanism for an unbiased device under a pure oxygen atmosphere[20]; (c) the grey halo around the black spot[23-24]; (d) the processes of water interaction in the OLEDs[23-24]; (e) growth mechanism of black spots under water and oxygen[3, 14]

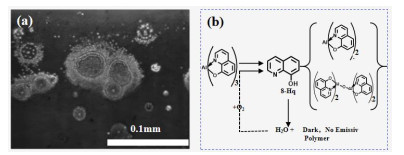

图 4 潮湿环境会诱导有机物结晶形成黑点:(a) Alq3薄膜的透射偏光显微镜照片[6];(b) Alq3与水反应过程及产物[25];
Figure 4. Humid environments induce the crystallization of organic matter, leading to the formation of black spots: (a) transmission polarization micrograph of an Alq3 film [6]; (b) reaction of Alq3 complex with water to form 8-Hq and other products[25]

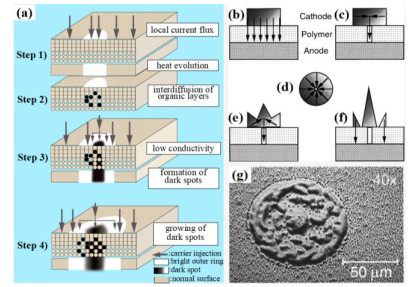

图 5 局部高电流导致黑点的形成:(a) 黑点生长过程及机理[27];(b) 正常工作时电流走向[9];(c) 电流流向短路[9];(d) 大电流沿圆周方向冲入短路[9];(e) 缺陷中心会产生累积的铝金属原子[9];(f) 圆形边界处的铝阴极会变得足够薄,无法注入电子越过边界界限[9];(g) 黑点光学图片[9]
Figure 5. Localized high current leads to the formation of black spots: (a) Illustration of a propagation mechanism of dark spots[27]; (b) Current direction during normal operation[9]; (c) Diversion of current flow into short circuit[9]; (d) Large electric current dashed into the short circuit in a circular manner[9]; (e) Accumulated al metal atoms will be created at the center of the defect, and (f) Al cathode at the circular boundary will become thin enough and not able to inject electrons to cross the boundary limit[9]; (g) Optical micrographs showing dark spot[9]

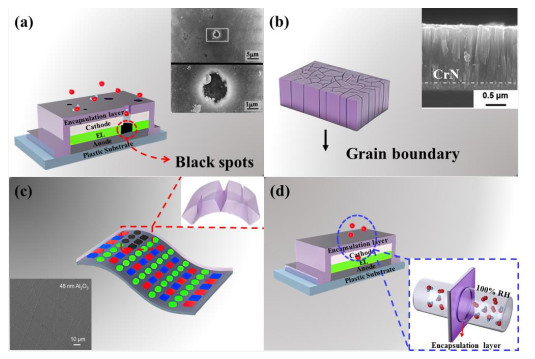

图 8 不同阻挡层下水氧渗透路径:(a) 从针孔通过[54];(b) 从晶界处通过[55-56];(c) 从裂纹处通过[57-58];(d) 从薄膜中直接渗透[61]
Figure 8. Infiltration paths of water and oxygen in different barrier layers: (a) water and oxygen molecules pass through the pinhole[54]; (b) water and oxygen molecules pass through the grain boundaries[55-56]; (c) water and oxygen molecules pass through the crack[57-58]; (d) water and oxygen molecules permeate directly through the barrier[61]

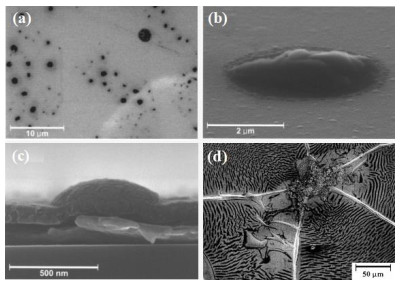

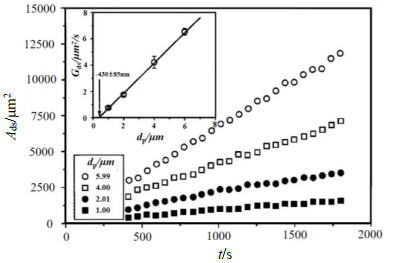

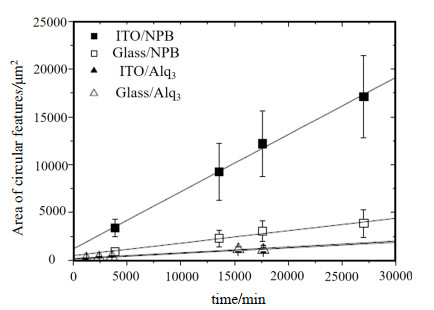

表 1 黑点形成原因总结
Table 1 Summary of the formation reasons of black spot
Device Architecture Structure of black spot Test conditions Causes of black spot formation Ref. ITO//NPB/Alq3/Mg: Ag Circular aggregates At 100% relative humidity for 2 h Humidity-induced crystallization of Alq3 [6] ITO/TPD/Alq3/Mg/Ag Rounded Voltage: 4.5 V (Current density: 3–5 mA/cm2) Particle [13] ITO/NPB/Alq3(Qd-doped) /Alq3/Al Round with a nucleus in the center Voltage: 5 V (Current density: 5 mA/cm2) Concentrated current [15] ITO/PEDOT: PSS/PPV/ (Ca/Ag) Round with a nucleus in the center 20℃/50% RH Particle/Pinhole [16-18] ITO/CuPc/NPD/Alq3/ Mg: Ag Circumferential and raised at the center nucleus Exposure to the air Pinhole [19] ITO/CuPc/NPD/Alq3/Li/Al Gray ring around the core area 75% RH Permeated with oxygen Particle [20] ITO/ PEDOT: PSSLEP/BaAl Circular black spot (25–80)℃ (50–90)% RH Pinhole [21] ITO/Alq3/LiF/Al Gray ring around the core area 20℃/50% RH Voltage: (2.5–6.5)V Pinhole [23] ITO/PEDOT: PSS/LEP/ BaAl Gray ring around the core area Voltage: 4 V 50% RH Pinhole [24] ITO/MEH-PPV/Al Circumferential and raised at the center nucleus Current density: 100 mA/cm2 Surface defects High current density [27] ITO/a-NPD/Alq3/Al Circumferential and raised at the center nucleus Voltage: 6–10 V (Current density: 500 mA/cm2) High current density [28] ITO/a-NPB/Alq3/Al Domed Voltage: 32 V Roughness of ITO surface [29] ITO/PEDOT: PSS/polyfluorene/Al Black dot with white outer ring H2O/O2 < 0.01 ppm Voltage: 3.2 V Roughness of ITO surface High current density [30] Ag/PEDOT: PSS/MEH-PPV/Alq3/LiF/Al Sparkling Voltage: 5 V (Current density: 150 mA/cm2) High current density [31] ITO/TPD/ Alq3/Al Corrugated High voltage density: 3×106 V/cm High current density [32] 表 2 薄膜封装阻隔性能总结

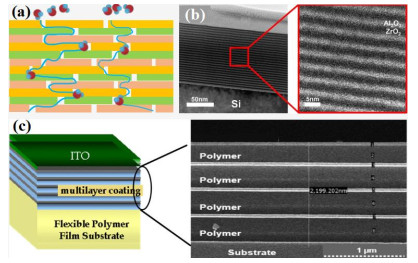

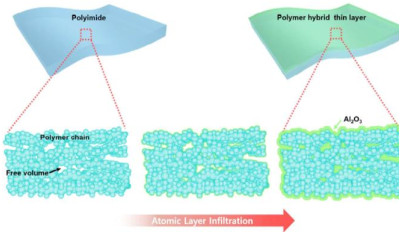

Table 2 Summary of the barrier properties of thin film encapsulation
Materials Fabrication method Fabrication condition and materials Thickness/nm Test temperature/(℃) and humidity/ RH(%) WVTR/(g/m2∙day) Ref. SiNx PE-CVD (Ar/SiH4/N2/NH3) RT, Plasma 100 60/85 2×10-2 [67] Al2O3/TiO2 PE-ALD (TMA/TDMAT/O2)100℃ (22.1/0.225)×123 60/90 9.16×10-5 [69] Al2O3/ZrO2 RP-ALD (TMA/TEMAZr/O2) 225℃, Plasma 100 50/50 9.9×10-4 [70] (Al2O3/Parylene)3 ALD/CVD (TMA/H2O/N2/Parylene) 60℃ 1590 38/100 < 10-5 [75] Al2O3 ALD (TMA/H2O)120℃ 25 38 /85 1.7×10-5 [77] Al2O3–PI hybrid ALI (TMA/PI/H2O/Ar)100℃ 22 ± 2 85/85 < 10−7 [77] Al2O3 ALD (TMA/O3)100℃ 50 50/50 2.0×10-5 [78] Al2O3 PE-ALD (TMA/O2)100℃, Plasma 50 50/50 3.0×10-4 [78] Al2O3 ALD (TMA/O3)80℃ 60 20/60 8.7×10-6 [79] Al2O3 PE-ALD (TMA/ O2)100℃, Plasma 50 60/90 3.8×10-4 [80] SiNx ICP-CVD (SiH4/N2/Ar)40℃, Plasma 100 38/100 5×10−2 [81] SiNx PE-CVD (SiH4/N2/NH3) 180℃, Plasma 500 85/85 3×10−2 [82] SiNx L-PECVD (SiH4/NH3/He) 85℃, Plasma/Ion beam 300 37.8/100 5.0×10-5 [84] Al2O3/SiOx ALD (TMA/Silanol/H2O) 175℃ 26/60 RT/100 5×10-5 [85] Al2O3/SiNx: H PE-ALD/ PE-CVD (TMA/O2)25℃, Plasma (SiH4/N2/NH3)110℃, Plasma 40/300 20/50 4×10-6 [86] SiNx/SiOx PE-CVD (SiH4/NH/N2O)250℃ - - 1.0×10-2 [87] Parylene/SiNx/SiOx PE-CVD (SiH4/NH/N2O /Parylene)80℃, Preheating 120℃ 150/50/50 25/40 5.2×10-3 [87] 3(SiOx/SiNx)+Parylene +3(SiOx/SiNx stacks) PE-CVD (SiH/NH/N2O/Parylene) 80℃/120℃ 750 25/40 2.5× 10-7 [87] -
[1] Turak A. Interfacial degradation in organic optoelectronics[J]. Rsc Advances, 2013, 3(18): 6188-6225. DOI: 10.1039/c2ra22770c
[2] Akkerman H B, Weijer P, Verstegen E, et al. Sub-micron pinhole detection in the cathode of organic light-emitting diodes[J]. Organic Electronics, 2017, 44: 263-270. DOI: 10.1016/j.orgel.2017.02.028
[3] Lim S F, WANG W, Chua S J. Understanding dark spot formation and growth in organic light emitting devices by controlling pinhole size and shape[J]. Advanced Functional Materials, 2002, 12(8): 513-518. DOI: 10.1002/1616-3028(20020805)12:8<513::AID-ADFM513>3.0.CO;2-7
[4] TANG C W, VanSlyke S A. Organic electroluminescent diodes[J]. Applied Physics Letters, 1987, 51(12): 913-915. DOI: 10.1063/1.98799
[5] HAN E M, Do L M, Yamamoto N, et al. Crystallization of organic thin films for electroluminescent devices[J]. Thin Solid Films, 1996, 273(1-2): 202-208. DOI: 10.1016/0040-6090(95)06782-5
[6] Aziz H, Popovic Z, XIE S, et al. Humidity-induced crystallization of tris (8-hydroxyquinoline) aluminum layers in organic light-emitting devices[J]. Applied Physics Letters, 1998, 72(7): 756-758. DOI: 10.1063/1.120867
[7] Do L M, Oyamada M, Koike A, et al. Morphological change in the degradation of Al electrode surfaces of electroluminescent devices by fluorescence microscopy and AFM[J]. Thin Solid Films, 1996, 273(1-2): 209-213. DOI: 10.1016/0040-6090(95)06781-7
[8] Do L M, Han E M, Niidome Y, et al. Observation of degradation processes of Al electrodes in organic electroluminescence devices by electroluminescence microscopy, atomic force microscopy, scanning electron microscopy, and Auger electron spectroscopy[J]. Journal of Applied Physics, 1994, 76(9): 5118-5121. DOI: 10.1063/1.357224
[9] Cumpston B H, Jensen K F. Electromigration of aluminum cathodes in polymer-based electroluminescent devices[J]. Applied Physics Letters, 1996, 69(25): 3941-3943. DOI: 10.1063/1.117577
[10] Bulle-Lieuwma C W T, van de Weijer P. 3D-TOFSIMS characterization of black spots in polymer light emitting diodes[J]. Applied Surface Science, 2006, 252(19): 6597-6600. DOI: 10.1016/j.apsusc.2006.02.103
[11] Liew Y F, Aziz H, HU N X, et al. Investigation of the sites of dark spots in organic light-emitting devices[J]. Applied Physics Letters, 2000, 77(17): 2650-2652. DOI: 10.1063/1.1320459
[12] Sudheendran Swayamprabha S, Dubey D K, Yadav R A K, et al. Approaches for long lifetime organic light emitting diodes[J]. Advanced Science, 2021, 8(1): 2002254. DOI: 10.1002/advs.202002254
[13] McElvain J, Antoniadis H, Hueschen M R, et al. Formation and growth of black spots in organic light-emitting diodes[J]. Journal of Applied Physics, 1996, 80(10): 6002-6007. DOI: 10.1063/1.363598
[14] Azrain M M, Mansor M R, Fadzullah S, et al. Analysis of mechanisms responsible for the formation of dark spots in organic light emitting diodes (OLEDs): a review[J]. Synthetic Metals, 2018, 235: 160-175. DOI: 10.1016/j.synthmet.2017.12.011
[15] Kawaharada M, Ooishi M, Saito T, et al. Nuclei of dark spots in organic EL devices: detection by DFM and observation of the microstructure by TEM[J]. Synthetic Metals, 1997, 91(1-3): 113-116. DOI: 10.1016/S0379-6779(97)03989-1
[16] LIM S F, KE L, WANG W, et al. Correlation between dark spot growth and pinhole size in organic light-emitting diodes[J]. Applied Physics Letters, 2001, 78(15): 2116-2118. DOI: 10.1063/1.1364658
[17] SHUANG F L, WANG W, Chua S J. Degradation of organic light-emitting devices due to formation and growth of dark spots[J]. Materials Science and Engineering B, 2001, 85(2-3): 154-159. DOI: 10.1016/S0921-5107(01)00599-2
[18] WANG W, Lim S F, Chua S J. Bubble formation and growth in organic light-emitting diodes composed of a polymeric emitter and a calcium cathode[J]. Journal of Applied Physics, 2002, 91(9): 5712-5715. DOI: 10.1063/1.1467395
[19] Kolosov D, English D S, Bulovic V, et al. Direct observation of structural changes in organic light emitting devices during degradation[J]. Journal of Applied Physics, 2001, 90(7): 3242-3247. DOI: 10.1063/1.1389760
[20] Schaer M, F Nüesch, Berner D, et al. Water vapor and oxygen degradation mechanisms in organic light emitting diodes[J]. Advanced Functional Materials, 2001, 11(2): 116-121. DOI: 10.1002/1616-3028(200104)11:2<116::AID-ADFM116>3.0.CO;2-B
[21] Okada T, Yoshida A, Tsuji T. Dark spot growth and its acceleration factor in organic light-emitting diodes with single barrier structure[J]. Japanese Journal of Applied Physics, 2017, 56(6): 060305. DOI: 10.7567/JJAP.56.060305
[22] Scholz S, Kondakov D, Bjrn Lüssem, et al. Degradation mechanisms and reactions in organic light-emitting devices[J]. Chemical Reviews, 2015, 115(16): 8449. DOI: 10.1021/cr400704v
[23] Van de Weijer P, Lu K, Janssen R R, et al. Mechanism of the operational effect of black spot growth in OLEDs[J]. Organic Electronics, 2016, 37: 155-162. DOI: 10.1016/j.orgel.2016.05.037
[24] Van de Weijer P, Bouten P C P, Fledderus H, et al. Mechanistic study on black and grey spot growth in OLEDs performed on laser-ablated pinholes in the cathode[J]. Organic Electronics, 2017, 42: 59-65. DOI: 10.1016/j.orgel.2016.12.025
[25] Papadimitrakopoulos F, ZHANG X M, Higginson K A. Chemical and morphological stability of aluminum tris (8-hydroxyquinoline)(Alq/sub 3/): effects in light-emitting devices[J]. IEEE Journal of Selected Topics in Quantum Electronics, 1998, 4(1): 49-57. DOI: 10.1109/2944.669465
[26] Png Ruiqi, Chia Perqjon, Sivaramakrishnan Sankaran, et al. Electromigration of the conducting polymer in organic semiconductor devices and its stabilization by cross-linking[J]. Applied Physics Letters, 2007, 91(1): 13511-13511. DOI: 10.1063/1.2749178
[27] Fujihira M, Do L M, Koike A, et al. Growth of dark spots by interdiffusion across organic layers in organic electroluminescent devices[J]. Applied Physics Letters, 1996, 68(13): 1787-1789. DOI: 10.1063/1.116667
[28] Kim S Y, Kim K Y, Tak Y H, et al. Dark spot formation mechanism in organic light emitting diodes[J]. Applied Physics Letters, 2006, 89(13): 132108. DOI: 10.1063/1.2357568
[29] Melpignano P, Baron-Toaldo A, Biondo V, et al. Mechanism of dark-spot degradation of organic light-emitting devices[J]. Applied Physics Letters, 2005, 86(4): 041105. DOI: 10.1063/1.1852706
[30] GAO L, Kerr J B, Johnson S. Dark spot formation relative to ITO surface roughness for polyfluorene devices[J]. Synthetic Metals, 2004, 144(1): 1-6. DOI: 10.1016/j.synthmet.2004.01.011
[31] Czerw R, Carroll D L, Woo H S, et al. Nanoscale observation of failures in organic light-emitting diodes[J]. Journal of Applied Physics, 2004, 96(1): 641-644. DOI: 10.1063/1.1759398
[32] ZHOU X, HE J, LIAO L, et al. Real-time observation of temperature rise and thermal breakdown processes in organic LEDs using an IR imaging and analysis system[J]. Advanced Materials, 12(4): 265-269. DOI: 10.1002/(SICI)1521-4095(200002)12:4<265::AID-ADMA265>3.0.CO;2-L
[33] WU C C, WU C I, Sturm J C J, et al. Surface modification of indium tin oxide by plasma treatment : an effective method to improve the efficiency, brightness, and reliability of organic light emitting devices[J]. Applied Physics Letters, 1997, 70(11): 1348-1350. DOI: 10.1063/1.118575
[34] LU H T, Yokoyama M. Plasma preparation on indium-tin-oxide anode surface for organic light emitting diodes[J]. Journal of Crystal Growth, 2004, 260(1/2): 186-190.
[35] Mason M G, HUNG L S, TANG C W, et al. Characterization of treated indium-tin-oxide surfaces used in electroluminescent devices[J]. Journal of Applied Physics, 1999, 86(3): 1688-1692. DOI: 10.1063/1.370948
[36] Phatak R, Tsui T Y, Aziz H. Dependence of dark spot growth on cathode/organic interfacial adhesion in organic light emitting devices[J]. Journal of Applied Physics, 2012, 111(5): 756.
[37] Ryu S Y, Noh J H, Hwang B H, et al. Transparent organic light-emitting diodes consisting of a metal oxide multilayer cathode[J]. Applied Physics Letters, 2008, 92(2): 15.
[38] Grandin H M, Griffiths K, Norton P R. Plasma treatment of the Mg: Ag/tris-(8-hydroxyquinoline) aluminum interface in OLEDs: effects on adhesion and performance[J]. Applied Surface Science, 2004, 230: 163-171. DOI: 10.1016/j.apsusc.2004.02.028
[39] Azrain M M, Mansor M R, Omar G, et al. Effect of high thermal stress on the organic light emitting diodes (OLEDs) performances[J]. Synthetic Metals, 2019, 247: 191-201. DOI: 10.1016/j.synthmet.2018.12.008
[40] McEwan J A, Clulow A J, Nelson A, et al. Dependence of organic interlayer diffusion on glass-transition temperature in OLEDs[J]. ACS Applied Materials & Interfaces, 2017, 9(16): 14153-14161.
[41] Nenna G, Flaminio G, Fasolino T, et al. A study on thermal degradation of organic LEDs using IR imaging[C]//Macromolecular Symposia, 2007, 247(1): 326-332.
[42] YIN S W, SHUAI Z, WANG Y. A quantitative structure-property relationship study of the glass transition temperature of OLED materials[J]. Journal of Chemical Information and Computer Sciences, 2003, 43(3): 970-977. DOI: 10.1021/ci034011y
[43] Smith Arthur R G, Ruggles Jeremy L, Cavaye Hamish, et al. Investigating morphology and stability of fac-tris (2-phenylpyridyl)iridium(Ⅲ) films for OLEDs[J]. Advanced Functional Materials, 2011, 21(12): 2225-2231. DOI: 10.1002/adfm.201002365
[44] Davidson Hall T, Aziz H. A comparison of the effect of joule heating vs thermal annealing on the morphology of typical hole transport layers in organic light emitting devices[C]//Organic Light Emitting Materials and Devices XIX of SPIE, 2015, 9566: 140-146.
[45] Slyke S V, CHEN C H, TANG C W. Organic electroluminescent devices with improved stability[J]. Applied Physics Letters, 1998, 69(15): 2160-2162.
[46] Carrard M, Goncalves C S, SI A L, et al. Improved stability of interfaces in organic light emitting diodes with high Tg materials and self-assembled monolayers[J]. Thin Solid Films 1999, 352: 189. DOI: 10.1016/S0040-6090(99)00322-3
[47] Cho H Y, Park L S, Han Y S, et al. High-Tg N-Triarylamine derivatives as a hole injecting layer in organic light-emitting diodes[J]. Molecular Crystals and Liquid Crystals, 2009, 499(1): 323-332.
[48] Liew Y F, ZHU F, CHUA S J. Effect of organic layer combination on dark spot formation in organic light emitting devices[J]. Chemical Physics Letters, 2004, 394(4-6): 275-279. DOI: 10.1016/j.cplett.2004.07.023
[49] Seo H K, Park M H, Kim Y H, et al. Laminated graphene films for flexible transparent thin film encapsulation[J]. ACS Applied Materials & Interfaces, 2016, 8(23): 14725-14731.
[50] Wegler B, Schmidt O, Hensel B. Influence of PEDOT: PSS on the effectiveness of barrier layers prepared by atomic layer deposition in organic light emitting diodes[J]. Journal of Vacuum Science & Technology A: Vacuum, Surfaces, and Films, 2015, 33(1): 01A147.
[51] KIM E, HAN Y, KIM W, et al. Thin film encapsulation for organic light emitting diodes using a multi-barrier composed of MgO prepared by atomic layer deposition and hybrid materials[J]. Organic Electronics, 2013, 14(7): 1737-1743. DOI: 10.1016/j.orgel.2013.04.011
[52] LI Y, XIONG Y, YANG H, et al. Thin film encapsulation for the organic light-emitting diodes display via atomic layer deposition[J]. Journal of Materials Research, 2020, 35(7): 681-700. DOI: 10.1557/jmr.2019.331
[53] Yersak A S, Lee Y C. Probabilistic distributions of pinhole defects in atomic layer deposited films on polymeric substrates[J]. Journal of Vacuum Science & Technology A: Vacuum, Surfaces, and Films, 2016, 34(1): 01A149.
[54] Uchida H, Yamashita M. Pinhole defect evaluation of TiN films prepared by dry coating process[J]. Vacuum, 2000, 59(1): 321-329. DOI: 10.1016/S0042-207X(00)00285-2
[55] Miikkulainen V, Leskelä M, Ritala M, et al. Crystallinity of inorganic films grown by atomic layer deposition: overview and general trends[J]. Journal of Applied Physics, 2013, 113(2): 2.
[56] WAN Z, ZHANG T F, LEE H B R, et al. Improved corrosion resistance and mechanical properties of CrN hard coatings with an atomic layer deposited Al2O3 interlayer[J]. ACS Applied Materials & Interfaces, 2015, 7(48): 26716-26725.
[57] Jen S H, Bertrand J A, George S M. Critical tensile and compressive strains for cracking of Al2O3 films grown by atomic layer deposition[J]. Journal of Applied Physics, 2011, 109(8): 084305. DOI: 10.1063/1.3567912
[58] Ylivaara O M E, LIU X, Kilpi L, et al. Aluminum oxide from trimethylaluminum and water by atomic layer deposition: the temperature dependence of residual stress, elastic modulus, hardness and adhesion[J]. Thin Solid Films, 2014, 552: 124-135. DOI: 10.1016/j.tsf.2013.11.112
[59] Lewis J. Material challenge for flexible organic devices[J]. Materials Today, 2006, 9(4): 38-45. DOI: 10.1016/S1369-7021(06)71446-8
[60] Jen S H, George S M, McLean R S, et al. Alucone interlayers to minimize stress caused by thermal expansion mismatch between Al2O3 films and Teflon substrates[J]. ACS Applied Materials & Interfaces, 2013, 5(3): 1165-1173.
[61] García A, Álvarez S, Riera F, et al. Water and hexane permeate flux through organic and ceramic membranes: effect of pretreatment on hexane permeate flux[J]. Journal of membrane science, 2005, 253(1-2): 139-147. DOI: 10.1016/j.memsci.2004.11.030
[62] Carcia P F, McLean R S, Reilly M H, et al. Ca test of Al2O3 gas diffusion barriers grown by atomic layer deposition on polymers[J]. Applied Physics Letters, 2006, 89(3): 913.
[63] Maindron T, Jullien T, André A. Defect analysis in low temperature atomic layer deposited Al2O3 and physical vapor deposited SiO barrier films and combination of both to achieve high quality moisture barriers[J]. Journal of Vacuum Science & Technology A: Vacuum, Surfaces, and Films, 2016, 34(3): 031513.
[64] HAN Y C, KIM E, KIM W, et al. A flexible moisture barrier comprised of a SiO2-embedded organic–inorganic hybrid nanocomposite and Al2O3 for thin-film encapsulation of OLEDs[J]. Organic Electronics, 2013, 14(6): 1435-1440. DOI: 10.1016/j.orgel.2013.03.008
[65] Choi H, Shin S, Jeon H, et al. Fast spatial atomic layer deposition of Al2O3 at low temperature (< 100℃) as a gas permeation barrier for flexible organic light-emitting diode displays[J]. Journal of Vacuum Science & Technology A: Vacuum, Surfaces, and Films, 2016, 34(1): 01A121.
[66] Rückerl A, Zeisel R, Mandl M, et al. Characterization and prevention of humidity related degradation of atomic layer deposited Al2O3[J]. Journal of Applied Physics, 2017, 121(2): 025306. DOI: 10.1063/1.4973583
[67] Carcia P F, McLean R S, Groner M D, et al. Gas diffusion ultrabarriers on polymer substrates using Al2O3 atomic layer deposition and SiN plasma-enhanced chemical vapor deposition[J]. Journal of Applied Physics, 2009, 106(2): 023533. DOI: 10.1063/1.3159639
[68] Singh A K, Graham S. Ultrabarrier films for packaging flexible electronics: examining the role of thin-film technology[J]. IEEE Nanotechnology Magazine, 2018, 13(1): 30-36.
[69] KIM L H, JEONG Y J, AN T K, et al. Optimization of Al2O3/TiO2 nanolaminate thin films prepared with different oxide ratios, for use in organic light-emitting diode encapsulation, via plasma-enhanced atomic layer deposition[J]. Physical Chemistry Chemical Physics, 2016, 18(2): 1042-1049. DOI: 10.1039/C5CP06713H
[70] Behrendt A, Meyer J, van de Weijer P, et al. Stress management in thin-film gas-permeation barriers[J]. ACS Applied Materials & Interfaces, 2016, 8(6): 4056-4061.
[71] Meyer J, Schneidenbach D, Winkler T, et al. Reliable thin film encapsulation for organic light emitting diodes grown by low-temperature atomic layer deposition[J]. Applied Physics Letters, 2009, 94(23): 157.
[72] Moro L L, Krajewski T A, Rutherford N M, et al. Process and design of a multilayer thin film encapsulation of passive matrix OLED displays[C]//Organic Light-Emitting Materials and Devices VII. of SPIE, 2004, 5214: 83-93.
[73] Park J S, CHAE H, CHUNG H K, et al. Thin film encapsulation for flexible AM-OLED: a review[J]. Semiconductor Science Technology, 2011, 26(3): 034001. DOI: 10.1088/0268-1242/26/3/034001
[74] Ghosh A P, Gerenser L J, Jarman C M, et al. Thin-film encapsulation of organic light-emitting devices[J]. Applied Physics Letters, 2005, 86(22): 913.
[75] WU J, FEI F, WEI C, et al. Efficient multi-barrier thin film encapsulation of OLED using alternating Al2O3 and polymer layers[J]. Rsc Advances, 2018, 8(11): 5721-5727. DOI: 10.1039/C8RA00023A
[76] YOON K H, KIM H S, HAN K S, et al. Extremely high barrier performance of organic-inorganic nanolaminated thin films for organic light-emitting diodes[J]. Acs Applied Materials & Interfaces, 2017, 9(6): 5399-5408.
[77] LEE L, YOON K H, JUNG J W, et al. Ultra gas-proof polymer hybrid thin layer[J]. Nano Letters, 2018, 18(9): 5461-5466. DOI: 10.1021/acs.nanolett.8b01855
[78] Franke S, Baumkötter M, Monka C, et al. Alumina films as gas barrier layers grown by spatial atomic layer deposition with trimethylaluminum and different oxygen sources[J]. Journal of Vacuum Science & Technology A: Vacuum, Surfaces, and Films, 2017, 35(1): 01B117.
[79] YANG Y Q, DUAN Y, CHEN P, et al. Realization of thin film encapsulation by atomic layer deposition of Al2O3 at low temperature[J]. The Journal of Physical Chemistry C, 2013, 117(39): 20308-20312. DOI: 10.1021/jp406738h
[80] KIM L H, KIM K, Park S, et al. Al2O3/TiO2 nanolaminate thin film encapsulation for organic thin film transistors via plasma-enhanced atomic layer deposition[J]. ACS Applied Materials & Interfaces, 2014, 6(9): 6731-6738.
[81] KIM H K, KIM S W, KIM D G, et al. Thin film passivation of organic light emitting diodes by inductively coupled plasma chemical vapor deposition[J]. Thin Solid Films, 2007, 515(11): 4758-4762. DOI: 10.1016/j.tsf.2006.11.030
[82] HUANG W, WANG X, SHENG M, et al. Low temperature PECVD SiNx films applied in OLED packaging[J]. Materials Science and Engineering: B, 2003, 98(3): 248-254. DOI: 10.1016/S0921-5107(03)00045-X
[83] Nagai M. Defects of passivation films for color-filter-based OLED devices: Effects on dark spot formation[J]. Journal of The Electrochemical Society, 2006, 154(2): J65.
[84] Yun S J, Abidov A, Kim S, et al. Water vapor transmission rate property of SiNx thin films prepared by low temperature (< 100℃) linear plasma enhanced chemical vapor deposition[J]. Vacuum, 2018, 148: 33-40. DOI: 10.1016/j.vacuum.2017.10.036
[85] Dameron A A, Davidson S D, Burton B B, et al. Gas diffusion barriers on polymers using multilayers fabricated by Al2O3 and rapid SiO2 atomic layer deposition[J]. The Journal of Physical Chemistry C, 2008, 112(12): 4573-4580. DOI: 10.1021/jp076866+
[86] Keuning W, Van de Weijer P, Lifka H, et al. Cathode encapsulation of organic light emitting diodes by atomic layer deposited Al2O3 films and Al2O3/α-SiNx: H stacks[J]. Journal of Vacuum Science & Technology A: Vacuum, Surfaces, and Films, 2012, 30(1): 01A131.
[87] CHEN T N, WU D S, WU C C, et al. Improvements of permeation barrier coatings using encapsulated parylene interlayers for flexible electronic applications[J]. Plasma Processes and Polymers, 2007, 4(2): 180-185. DOI: 10.1002/ppap.200600158
-
