基于卷积自编码的fNIRS信号运动校正算法研究

李永康, 李茜, 王琦雯, 徐琪, 李晓欧

李永康, 李茜, 王琦雯, 徐琪, 李晓欧. 基于卷积自编码的fNIRS信号运动校正算法研究[J]. 红外技术, 2024, 46(8): 923-932.
引用本文: 李永康, 李茜, 王琦雯, 徐琪, 李晓欧. 基于卷积自编码的fNIRS信号运动校正算法研究[J]. 红外技术, 2024, 46(8): 923-932.
LI Yongkang, LI Xi, WANG Qiwen, XU Qi, LI Xiaoou. fNIRS Signal Motion Correction Algorithm Based on Convolutional Self-Coding[J]. Infrared Technology , 2024, 46(8): 923-932.
Citation: LI Yongkang, LI Xi, WANG Qiwen, XU Qi, LI Xiaoou. fNIRS Signal Motion Correction Algorithm Based on Convolutional Self-Coding[J]. Infrared Technology , 2024, 46(8): 923-932.

基于卷积自编码的fNIRS信号运动校正算法研究

基金项目:

上海市科委地方院校能力建设项目 22010502400

详细信息
    作者简介:

    李永康(1996-),男,河北秦皇岛人,硕士研究生,主要从事医学信号处理研究

    通讯作者:

    李晓欧(1975-),男,上海人,教授,主要从事医学信号处理和穿戴式医疗器械方面的研究。E-mail:lixo@sumhs.edu.cn

  • 中图分类号: R318.04

fNIRS Signal Motion Correction Algorithm Based on Convolutional Self-Coding

  • 摘要:

    功能性近红外光谱技术(functional near-infrared spectroscopy,fNIRS)作为一种高时间分辨率、成本低廉、便携性高的脑成像系统,近年来深受脑神经科学等研究领域的关注。但fNIRS信号中的运动伪迹会干扰后期数据分析的结果,且现有的一些算法去噪效果较为单一。因此,本文提出了一种基于多层卷积自编码的fNIRS信号运动伪迹校正算法——MCAN算法,并使用该算法对fNIRS信号中的3种运动伪迹进行校正;然后用仿真数据和实验数据对所提算法的性能进行验证,将其与现有的几种常用算法进行对比,结果表明:MCAN算法在剩余运动伪迹数量、均方误差、信噪比、皮尔逊相关系数的平方、峰峰误差几种指标上表现良好,说明所提算法可作为一种全新的fNIRS信号预处理算法。

    Abstract:

    Functional near-infrared spectroscopy (fNIRS) has attracted considerable attention in recent years in brain neuroscience as a brain imaging system with high temporal resolution, low cost, and high portability. However, motion artifacts in fNIRS signals interfere with the results of subsequent data analysis, and the denoising effect of some existing algorithms is insufficient. Therefore, a motion artifact correction algorithm for fNIRS signals based on a multilayer convolutional self-coding (MCAN) algorithm is proposed. The algorithm was used to correct three motion artifacts in the fNIRS signals. Next, the performance of the proposed algorithm was verified using simulation and experimental data and compared with several widely used algorithms. The results show that the MCAN algorithm performs satisfactorily in the remaining number of motion pseudo-traces, mean squared error, signal-to-noise ratio, square of Pearson correlation coefficient, and peak-to-peak error. Therefore, the proposed algorithm can be used as an efficient fNIRS signal preprocessing algorithm.

  • 常规望远镜热设计为一体化设计,热设计满足整机的热控指标即可。在轨组装望远镜热设计为分体式设计。每个模块都需要进行单独的热设计保证模块可以独立工作,且模块之间存在耦合关系,在轨安装之后通过热接口相互传递热量,完成整机的热控工作。在轨组装望远镜CMOS组件(下文简称为CMOS组件)热设计是在轨组装望远镜热设计中的关键节点。

    为解决CMOS组件选取热设计参数数值的难点问题,需对热设计参数进行灵敏度分析。灵敏度分析是一种分析系统的输入对输出响应影响程度的方法,适应于解决复杂的多输入系统的优化设计问题。为了实现望远镜关键部件CMOS组件的控温目标,需要对影响CMOS温度的参数优化调整,但是待优化参数多,遍历每个参数进行优化的工程量大,耗时长,而且参数之间存在耦合关系,这更加大了优化难度。考虑到每个参数对CMOS温度的影响程度不同,对待优化参数进行灵敏度分析确定影响程度较大的参数并对其着重优化,可一定程度上减少参数优化的难度,节省设计成本,提高热设计的可靠性。

    在望远镜在轨组装和航天器热设计领域中,国内外学者进行了大量研究。国外方面,詹姆斯韦伯望远镜(James Webb Space Telescope,JWST)由阿丽亚娜5号发射,并在反太阳地球-太阳拉格朗日点的轨道上展开在轨部署[1]。Franck R. A.和Shaughnessy B. M.[2-3]等学者分别针对JWST的尾部光学系统和中红外仪器进行了相关热设计。国内方面也对其进行了大量研究,王洪亮[4-5]等学者针对在轨组装大口径红外望远镜进行热设计并通过灵敏度优化热设计参数。杨雨霆[6-7]等学者针对高空气球平台地-月成像光谱仪载荷系统热设计参数进行了灵敏度分析,提出了热设计的简便思路。郭亮[8-9]等学者运用控制变量灵敏度分析手段,得到太阳吸收系数、红外半球发射率、内部热源及传导换热系数对于空间光谱成像仪温度的影响。Y. Xiong[10-11]等学者提出了改进的思维进化算法的径向基函数(radial basis function neural network,RBF)等神经网络应用于航天器热物理模型的方法,并基于此方法开展热设计参数灵敏度优化。

    有限元仿真计算工作中,为了得到大量的温度数据,需要输入不同的热设计参数,单纯的人工输入会带来大量的重复劳动,本文通过对有限元软件二次开发,实现输入数据由文本文件提取,自动计算的功能。在以往工作中,针对热设计参数的灵敏度分析,往往采用单一方法,会导致灵敏度分析结果的不确定性和误差,本文提出了一种基于MIV算法[12-13]并结合传统回归分析Pearson和Spearman算法[14-15]相互对比验证的混合灵敏度分析方法,此方法对于CMOS组件方法对在轨组装望远镜CMOS热设计参数优化提供了方向并对在轨组装望远镜整机热设计具有一定的指导意义。

    在轨组装望远镜载荷布局如图 1所示。主反射镜由5个拼接镜拼接而成,分别安装在六足促动器与主体框架相接。次反射镜安装在折叠式次镜支撑与主体相接。CMOS组件安装在主体结构内部。其中,+Z方向为望远镜光轴方向、由主镜指向次镜,+X方向为望远镜前进方向,+Y方向由右手螺旋定则确定。

    图  1  在轨组装望远镜的模型示意图
    Figure  1.  Model schematic of the in-orbit assembly of the telescope

    在轨组装望远镜搭载CMOS组件为可见光成像,CMOS组件应满足的热设计指标如表 1所示。由表 1可知,指标提出在工作工况下CMOS温度控制在15℃~30℃,在存储工况下CMOS温度控制在0℃~40℃。

    表  1  CMOS组件主要热设计参数
    Table  1.  Main thermal design parameters for CMOS components
    Symbol Parameter significance
    ε1 Infrared emissivity of the outer surface of the cooling plate
    α2 Solar absorption rate on the outer surface of the cooling plate
    T3 Thickness of cooling plate
    K4 Thermal conductivity of copper bar
    K5 Thermal conductivity of heat pipe
    R6 Thermal resistance between CMOS and CMOS mounting surface
    R7 Thermal resistance between CMOS and aluminum blocks
    R8 Thermal resistance between aluminum block and copper bar
    R9 Thermal resistance between copper bar and heat pipe
    R10 Thermal resistance between heat pipe and cooling plate
    下载: 导出CSV
    | 显示表格

    结合以上指标,CMOS组件热设计主要有以下难点:

    ① 在轨组装望远镜外流热变化频繁,无稳定阳照区、阴影区,散热设计困难。

    ② 在轨组装望远镜各部件单独热控,相互之间通过接口耦合。CMOS组件和主体框架、辐射冷板相互耦合,耦合关系复杂。

    热设计参数的灵敏度分析主要有全局灵敏度分析和局部灵敏度分析。局部灵敏度只能分析单个输入对输出的影响,计算效率高。全局灵敏度分析不受模型的限制,能够较为全面地反映多个设计参数之间相互产生的耦合作用对系统响应的影响。本文提出混合灵敏度分析方法对CMOS散热路径上的参数进行灵敏度分析,在混合灵敏度分析方法中,Pearson、Spearman方法为局部灵敏度分析,MIV方法为全局灵敏度分析。

    图 2可知,本模型CMOS组件散热路径包括CMOS、CMOS安装面、导热铝块、导热铜条、热管和辐射冷板。选取CMOS散热路径上的10个热设计参数进行灵敏度分析,热设计参数的详细信息见表 1

    图  2  CMOS组件散热路径示意图
    Figure  2.  Schematic diagram of the thermal path of a CMOS component

    依据参数的取值范围,对参数应用拉丁超立方抽样生成300组参数样本。拉丁超立方抽样相对于随机抽样,具有变量范围全覆盖,均匀性更好的优点。将参数样本代入有限元软件划分的有限元网络模型中计算,得出CMOS中心点温度数据作为输出数据。

    Pearson方法反映两个变量XY的线性相关程度。Pearson公式如下:

    $$ {\rho _{{X_i}, Y}} = {\rm corr}({X_{ij}}, Y) = \frac{{{\rm Cov}({X_{ij}}, Y)}}{{{S_{{X_{ij}}}}{S_Y}}} $$ (1)

    式中:Xi表示第iX序列。记Xi的第j次采样数据为Xijj=1, 2, …, 300。利用每组10个采样数据可以得到300个温度值Yij=1, 2, …, 300。通过式(1)计算,得出10输入参数和输出温度之间的Pearson相关系数。

    Spearman方法反应秩相关系数,Spearman公式如下:

    $$\rho=\frac{\sum_j\left(x_{i j}-\overline{x_i}\right)\left(y_j-\bar{y}\right)}{\sqrt{\sum_j\left(x_{i j}-\overline{x_i}\right)^2 \sum_j\left(y_j-\bar{y}\right)^2}}$$ (2)

    式中:xij表示第jxi数据秩次;yi表示第iy数据秩次。代入数据计算出Spearman相关系数。

    平均影响值(MIV)方法衡量神经网络输入参数对输出参数影响大小,符号代表影响的方向,大小代表影响的重要性。首先通过300组输入和输出数据拟合神经网络,取80%数据用来训练,10%数据用来验证,10%数据用来测试,构建神经网络模型。基于贝叶斯优化训练BP神经网络,隐含层选取10层。神经网络原理图如图 3所示。

    图  3  基于贝叶斯优化的BP神经网络原理
    Figure  3.  Schematic diagram of a BP neural network based on Bayesian optimization

    经过神经网络训练,回归R值为0.99,训练均方误差量级在e-4以下,测试均方误差量级在e-3以下,满足工程要求。将输入参数数值分别增加10%、减少10%,分别带入到训练好的神经网络中,得出预测的输出值,求得两组输出值的差值,即为MIV值。计算出基于MIV方法的热设计参数灵敏度。

    3种方法计算出灵敏度如图 4所示。

    图  4  热设计参数灵敏度分布
    Figure  4.  Sensitivity distribution of thermal design parameters

    图 4可知,散热路径热设计参数中,CMOS温度对于ε1α2T3K4R7R8R9参数较为敏感。得到影响CMOS温度的主要热设计参数:ε1为散热面白漆发射率;α2为散热面白漆吸收率;T3为辐射冷板厚度;K4为导热铜索的导热率;R7为CMOS安装面与铝基导热板间热阻;R8为铝基导热板与导热铜索间热阻;R9为导热铜索与热管间热阻。在热设计中,主要优化以上参数,其余参数在设计有余地时也应该适当考虑。

    Pearson方法中CMOS温度对ε1α2R9T3参数较为敏感。Spearman方法中CMOS温度对ε1α2R9R7参数较为敏感。MIV方法中CMOS温度对ε1α2R8K4参数较为敏感。比较3种方法,ε1α2为最重要的灵敏度参数,在热设计中应着重考虑。T3K4R7R8R9参数也对CMOS温度有一定的影响。在设计中,参数数值增大,CMOS温度随之升高的热设计参数定义为正影响参数,反之定义为负影响参数。其中,α2R7R8R9为正影响参数,ε1T3K4为负响应参数。为提高CMOS组件的散热能力,在热设计过程中应增大ε1T3K4参数数值,减小α2R7R8R9参数数值。

    依据本文混合灵敏度分析方法结果,制定CMOS组件相关热设计如下。

    1)在CMOS组件上布置控温回路,保证CMOS组件存储工况下温度满足热控指标。

    2)辐射冷板背部布置控温回路,防止辐射冷板背部热管在存储工况下过冷导致失效。

    1)在辐射冷板表面上喷涂白漆以获得优良的散热性能,选用S781白漆,太阳吸收率为0.17~0.23,红外发射率为0.85~0.86;

    2)导热索材料选择紫铜,导热率为390 W/(m2·K);

    3)导热铝块与主体框架隔热安装,增大导热铝块与主体框架间热阻,R为20℃/W;

    4)散热路径上零件导热安装,打磨接触面使其光滑,导热系数取1000 W/(m2·K),CMOS安装面与导热铝块间热阻为0.4℃/W,导热铝块与导热索间热阻为0.2℃/W,导热索与热管间热阻为0.04℃/W。

    通过有限元软件对在轨组装望远镜进行建模,共划分了16898个壳单元,建立122个热耦合。其中CMOS组件有限元模型如图 5所示。

    图  5  CMOS组件有限元模型
    Figure  5.  Finite element model of CMOS component

    为验证CMOS组件能否满足温度指标要求,定义高低温两种工况。在高温工况下,外热流选最大值取冬至时刻,白漆属性选择末期属性,红外发射率取0.85,太阳吸收率取0.23。在低温工况下,外热流选最小值取夏至时刻,白漆属性选择初期属性,红外发射率取0.86,太阳吸收率取0.17。两种工况下望远镜整体保留主动热控措施。CMOS整轨运行期间以满功率状态运行10 min,其余时间处于待机状态。

    通过有限元软件仿真计算出CMOS温度,得到低温工况下CMOS温度T1和高温工况下CMOS温度T2时间变化曲线如图 6所示。

    图  6  高低温工况CMOS温度变化曲线
    Figure  6.  CMOS temperature variation curves for high and low temperature operating conditions

    图 6可知,在高低温极端工况下CMOS组件温度波动1.6℃~25.4℃,在工作期间满足指标15℃~30℃,在待机期间满足指标0℃~40℃。证明了本文提出的混合灵敏度分析方法的热设计方法可行性。

    本文提出了一种混合灵敏度分析方法,该方法基于MIV算法并结合传统回归分析Pearson和Spearman算法相互对比验证。较单一灵敏度方法减少了不确定性和误差。较传统遍历选取热设计参数方法,该方法能够快速准确找出重要热设计参数,为在轨组装望远镜CMOS组件的热设计参数选取提供了依据。

    通过仿真分析,在高低温极端工况下CMOS组件温度波动1.6℃~25.4℃,满足工作温度,验证了基于混合灵敏度分析方法在CMOS热设计中可行性,该方法后续可扩展应用到在轨组装望远镜整机热设计中。

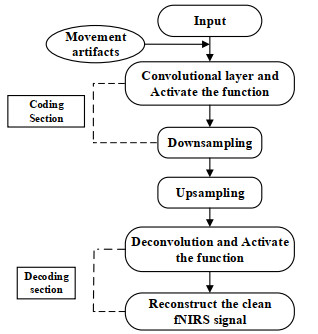

  • 图  1   MCAN算法fNIRS信号运动校正算法框图

    Figure  1.   Block diagram of the MCAN algorithm fNIRS signal motion correction algorithm

    图  2   MCAN算法训练流程示意图

    Figure  2.   Schematic diagram of the MCAN algorithm training process

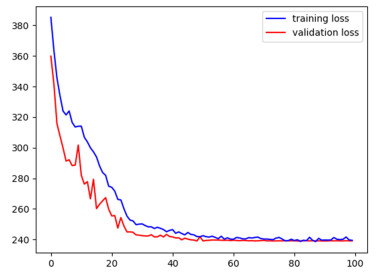

    图  3   MCAN训练可视化过程

    Figure  3.   Visualization of MCAN training

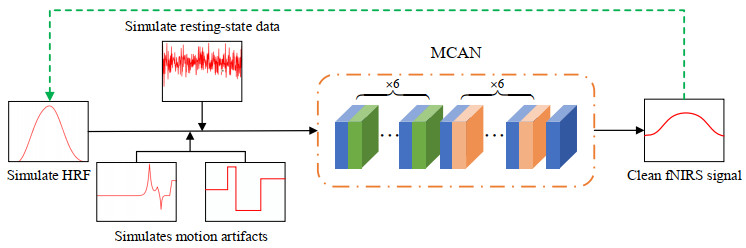

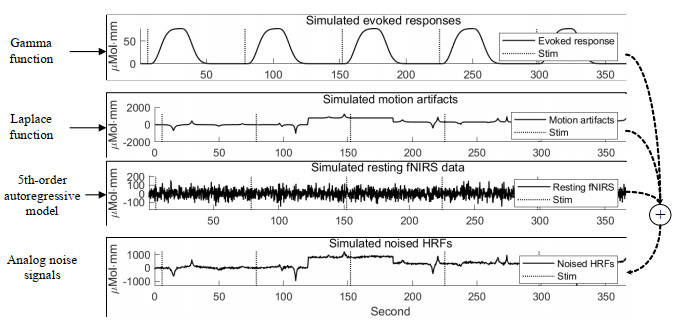

    图  4   仿真数据模拟示意图

    Figure  4.   Schematic diagram of the simulation data

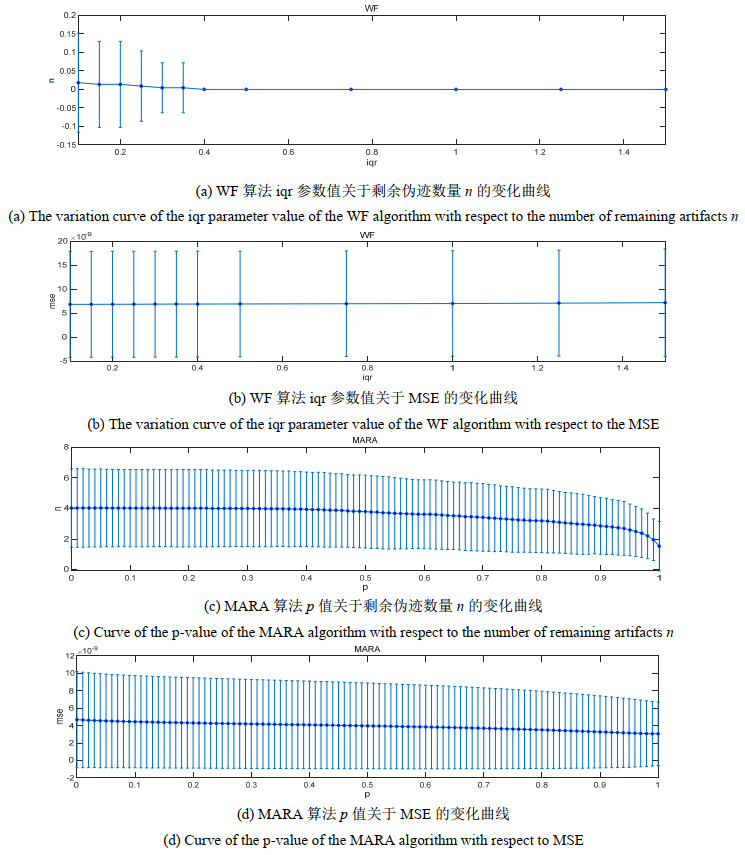

    图  5   MARA和WF算法灵敏度分析结果

    Figure  5.   Sensitivity analysis results of MARA and WF algorithms

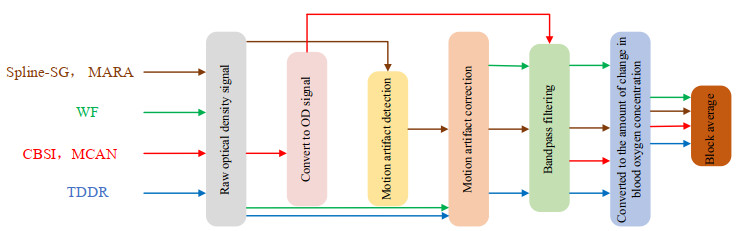

    图  6   六种算法的数据处理流程

    Figure  6.   Data processing flow diagram for six algorithms

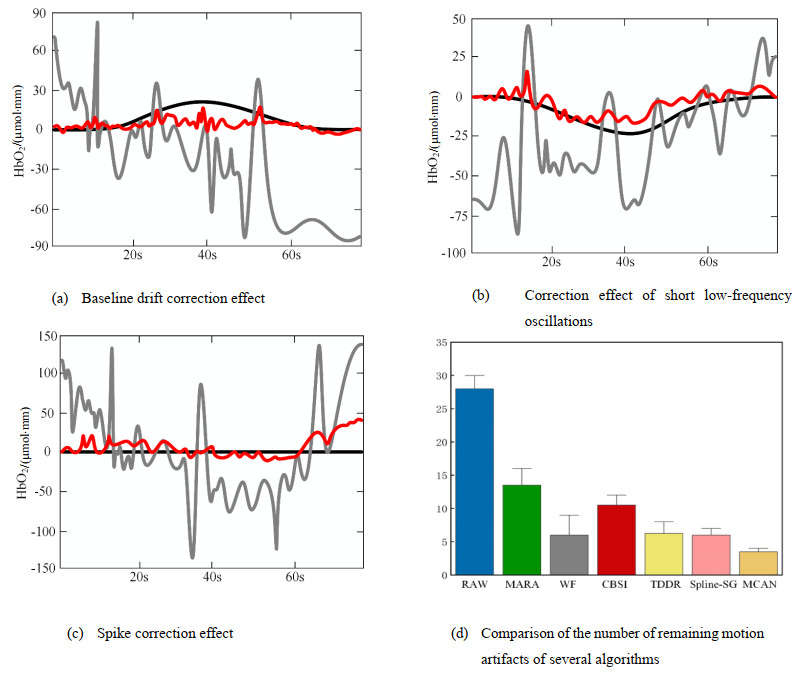

    图  7   MCAN算法处理后的仿真数据结果

    Figure  7.   The simulation data results processed by the MCAN algorithm

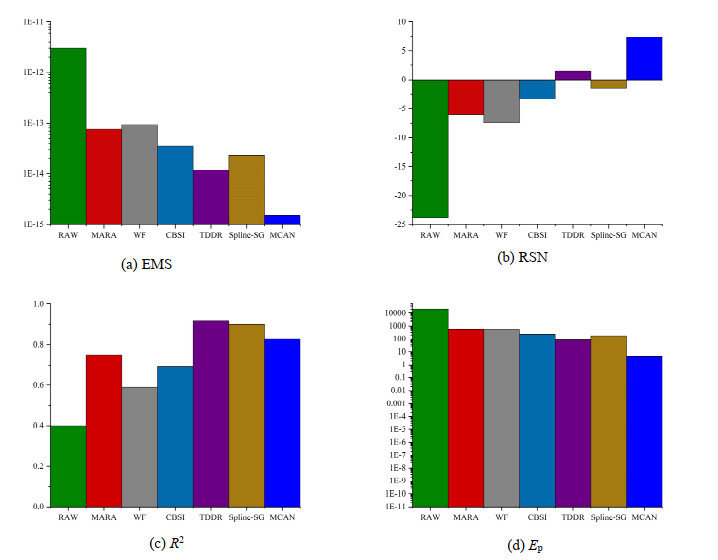

    图  8   仿真数据参数对比

    Figure  8.   Comparison of simulation data parameters

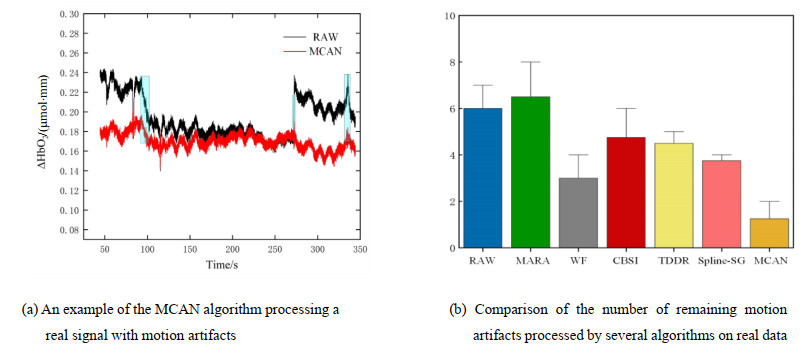

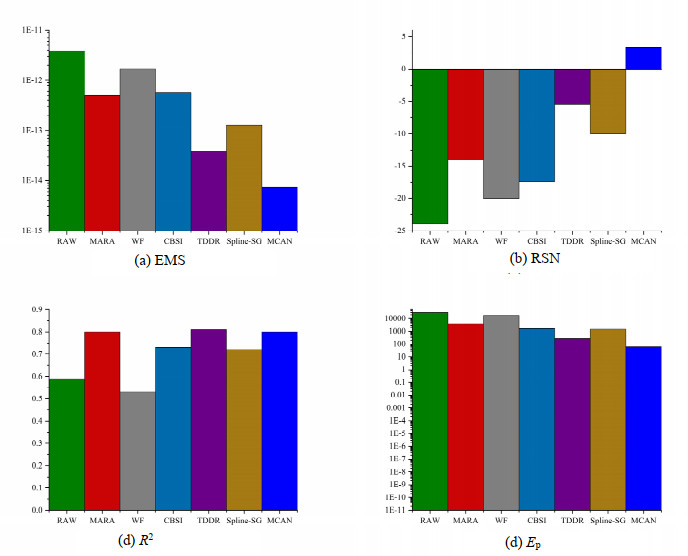

    图  9   实验数据数据处理结果
