Qualitative Identification of Terahertz Time-domain Spectra Based on Analytic Hierarchy Process

  • 摘要:

    太赫兹时域光谱技术属于远红外光谱技术的一种,其光谱能够反映物质的内部特性,具有丰富的物理和化学信息,因此利用太赫兹波可对含氮元素的添加剂进行定性识别。层次分析法原用于解决评价类问题,本文将其引入太赫兹光谱定性分析领域,提出一种结合层次分析法的太赫兹时域光谱定性识别方法,并采集数据对其进行验证。文中以6种添加剂作为实验样品,首先对采集到的太赫兹时域光谱数据进行预处理,将其转化为由峰值、峰位、峰数和整体趋势组成的数据集;然后将数据划分为对比集和测试集,构建结合层次分析法的添加剂定性识别模型,并进行参数寻优。结果表明,基于单一因素(即整体趋势、峰值、峰位、峰数)的添加剂定性识别精度分别为80.23%、70.93%、67.44%、40.70%,而基于多因素的层次分析定性识别方法识别精度可提升至92.44%。此外,在数据预处理阶段对吸收谱数据进行二值化模糊表征,并作为整体趋势的数据集,将层次分析定性识别模型与此种数据表征法结合后,识别精度可提至94.19%。研究结果证明了结合层次分析法的定性识别算法的有效性,且该法步骤简单,无需训练,适用于小样本的快速定性检测。

    Abstract:

    Terahertz time-domain spectroscopy (THz-TDS) is a type of far-infrared spectroscopy that reflects the internal characteristics of substances and provides rich physical and chemical information. Therefore, terahertz waves can be used to qualitatively identify food additives containing nitrogen. Hierarchical analysis, originally developed for solving evaluation-type problems, is introduced in this study to the field of qualitative analysis of terahertz spectra. This paper proposes and evaluates a qualitative identification method that combines THz-TDS with hierarchical analysis. In this study, six nitrogen-containing food additives were selected as experimental samples. First, the acquired terahertz time-domain spectral data were preprocessed and transformed into four datasets: peak values, peak positions, peak numbers, and overall spectral trends. Next, the data were divided into comparison and test sets to construct a qualitative identification model incorporating hierarchical analysis, followed by parameter optimization. The results indicated that the qualitative identification accuracy of additives based on single factors: overall trend, peak value, peak position, and peak number were 80.23%, 70.93%, 67.44%, and 40.70%, respectively. The multi-factor hierarchical analysis-based method improved the identification accuracy to 92.44%. In addition, by binarizing the fuzzy characterization of the absorption spectrum data during preprocessing and using it as the basis for assessing overall trends, the recognition accuracy increased to 94.19% when combined with the hierarchical analysis model. These results demonstrate the effectiveness of the proposed qualitative identification algorithm. The method is straightforward, does not require training, and is well-suited for rapid qualitative detection of small sample sets.

  • 图  1   综合多因素的层次分析定性识别模型的流程图

    Figure  1.   Flow chart of qualitative identification model with AHP based on multiple factors

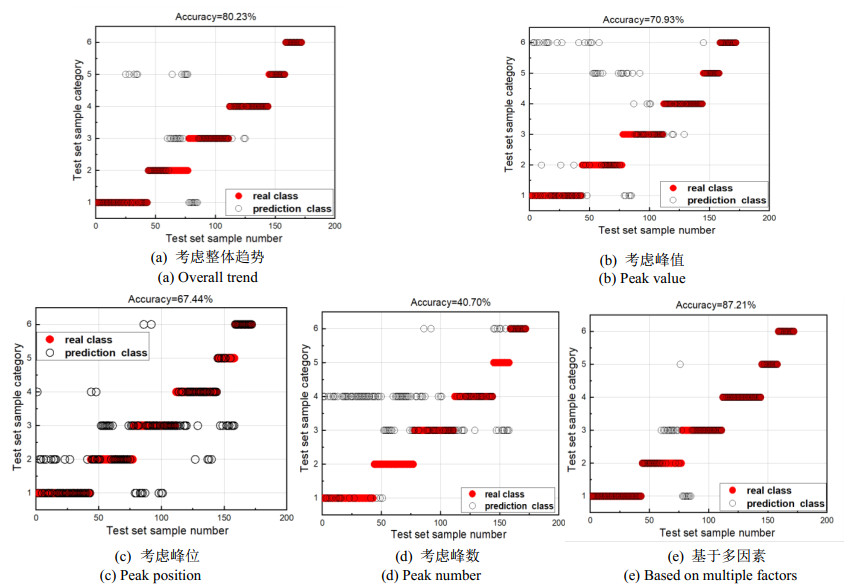

    图  2   考虑不同因素对6类添加剂样品的识别结果

    Figure  2.   The recognition results of 6 types of additive samples based on different factors

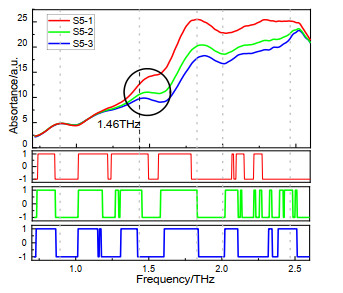

    图  3   样品S5原始吸收谱和模糊表征谱对比图

    Figure  3.   Comparison of original absorption spectra and fuzzy characterization spectra of sample S5

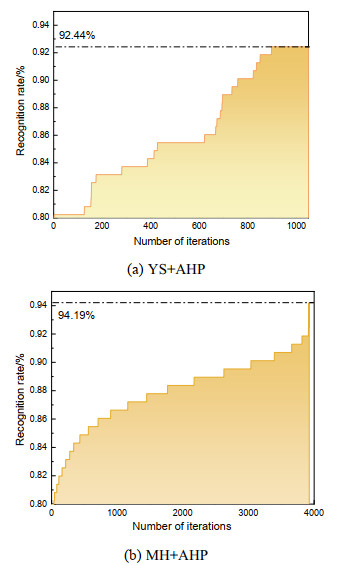

    图  4   层次分析法权重指标寻优结果图

    Figure  4.   Optimization results of AHP weight index

    表  1   AHP相对重要性尺度

    Table  1   AHP relative importance scale

    Scale Define Clarification
    1 Equally important Elements a and b are equally important for an attribute
    3 Slightly important Element a is slightly more important than element b for an attribute
    5 More important Element a is more important than element b for an attribute
    7 Clearly important Element a is significantly more important than element b for an attribute
    9 Special importance Element a is particularly more important than element b for an attribute
    2, 4, 6, 8. Midpoint A compromise between the two neighbouring scales above
    The reciprocal of the above scales Inverse comparison For example, a compares to b as 3 and b compares to a as 1/3.
    下载: 导出CSV

    表  2   添加剂样片信息统计

    Table  2   Statistical of additives samples

    Sample name Category number Sample concentration /% Sample quantity
    L-Alanine S1 S1-1 S1-2 S1-3 10% 3
    S1-4 S1-5 S1-6 25% 3
    S1-7 S1-8 S1-9 35% 3
    Benzoic acid S2 S2-1 S2-2 S2-3 10% 3
    S2-4 S2-5 S2-6 25% 3
    S2-7 S2-8 S2-9 35% 3
    Melamine S3 S3-1 S3-2 S3-3 10% 3
    S3-4 S3-5 S3-6 25% 3
    S3-7 S3-8 S3-9 35% 3
    2, 4-Hexadienoic acid S4 S4-1 S4-2 S4-3 10% 3
    S4-4 S4-5 S4-6 25% 3
    S4-7 S4-8 S4-9 35% 3
    Sudan-Ⅰ S5 S5-1 S5-2 S5-3 10% 3
    S5-4 S5-5 S5-6 25% 3
    S5-7 S5-8 S5-9 35% 3
    Xylitol S6 S6-1 S6-2 S6-3 10% 3
    S6-4 S6-5 S6-6 25% 3
    S6-7 S6-8 S6-9 35% 3
    下载: 导出CSV

    表  3   识别精度及其对应参数统计表(AHP方法)

    Table  3   Identification accuracy and corresponding parameters statistical table

    Data represen-tation Parameter weighting Identification accuracy/%
    Overall trend Peak value Peak
    position
    Peak number
    YS 1 0 0 0 80.23
    YS 0.6 0.1 0.2 0.1 92.44
    MH 1 0 0 0 93.60
    MH 0.8 0.1 0.1 0.0 94.19
    下载: 导出CSV
