Research Progress of Graphene Heterojunctions and Their Optoelectronic Devices
-
摘要: 石墨烯是具有高迁移率、高热导率、高比表面积、高透过率及良好的机械强度等特性的二维材料，在光电子器件领域被广泛用作透明电极及电荷传输层等。但由于石墨烯是零带隙材料，为半金属性，限制了其在半导体光电子器件领域的应用。为更加切合半导体产业应用的要求，构建异质结已经成为相关领域实现应用的重要途径。国际上已有较多团队开展了石墨烯异质结相关研究，目前已有较多报道。本文从石墨烯的性质出发，讲述了石墨烯异质结的发展历程，制备方法，并从材料制备与器件结构的角度总结了基于石墨烯异质结光电子器件的研究进展。最后，对石墨烯异质结在光电子器件领域的发展进行了展望。Abstract: Graphene is a two-dimensional material with high mobility, high thermal conductivity, high transmittance, large specific surface area, and good mechanical strength. It is widely utilized as a transparent electrode and charge-transporting layer in optoelectronic devices. However, graphene is a zero-bandgap material with inherent semi-metallic properties that limit its application in the field of semiconductor optoelectronic devices. The construction of heterojunctions has become a critical means to meet the requirements of semiconductor applications in specific industries. To date, many different graphene heterojunction structures have been reported owing to the wide selection of heterojunction materials. Based on the properties of graphene, this study describes the development and preparation methods of graphene heterojunctions and summarizes the research progress of photoelectronic devices based on graphene heterojunctions from the perspective of material preparation and device structure. Lastly, the development of graphene heterojunctions in optoelectronic devices is discussed.
-
Keywords:
- graphene /
- heterojunction /
- optoelectronic device
-
0. 引言
快速反射镜（fast steering mirror, FSM）是一种通过控制反射镜的偏转角度调整光束传播方向，实现收发两端的光束精确对准的装置。由于这类装置具有响应速度快、控制精度高等优点，快速反射镜已经被广泛应用于自由空间通信、扫描共焦显微镜、大型天文望远镜等光学系统中[1-3]，成为光束指向控制系统中应用最广泛的核心器件。
快速反射镜的机械结构主要由驱动元件、支撑结构和负载组成[4]。驱动元件包括音圈电机（voice coil motor, VCM）和压电驱动器（piezoelectric actuators, PEAs），由音圈电机驱动的快速反射镜具有高驱动行程、高加速度等优势，然而音圈电机输出驱动力有限，因此为了保证足够的偏摆范围，快速反射镜的支撑结构偏摆刚度不能太大，这就造成其谐振频率相对较低[5]。例如，2020年Tadahiko Shinshi等人提出了一种由音圈电机驱动的快速反射镜，其尖端倾斜范围可达±20 mrad，轴向带宽仅为200 Hz[6]。
压电驱动器具有高驱动力、高频响、高分辨率等优势，然而受到输出位移量小（仅为驱动器自身长度的0.1%~0.15%）以及不能承受侧向或拉伸载荷等缺点的限制[7]。而快速反射镜的支撑结构——柔性机构具有无需装配、无摩擦、响应速度快等优点，将柔性机构作为预紧和位移放大机构与压电驱动器组成压电驱动快速反射镜[8-9]。此类系统兼具压电陶瓷与柔性机构的优点，因而被广泛地应用于精确激光束控制等超精密系统。2010年向思桦等人采用单级桥式放大构型设计的快速反射镜具有较高一阶固有频率，但放大比较小，导致快速反射镜偏转角度较小[10]。2015年袁刚等人采用单级桥式放大构型设计的快速反射镜具有较大的偏转角，然而由于该柔性铰链的刚度较小，导致构型固有频率较低，仅为180.4 Hz[11]。2018年邵恕宝等人提出的压电驱动快反镜采用一级杆式构型可实现两轴±7 mrad的倾斜范围，同时两轴带宽高于810 Hz[12]。2019年Kim等人和2021年谢永等人均采用两级杠杆放大机构，保证了构型有较大的放大比，但其频响较低[13-14]。
现有快速反射镜柔性机构通常采用多级单一放大构型以增加放大比。然而，由于缺乏针对不同级数、不同构型之间性能特征的定量分析，设计过程缺乏选型依据[15-16]，导致现有快速反射镜普遍存在偏转范围小、扫描频率低的共性问题。由于快速反射镜在运动时，会受到一些来自平台或者外界环境的干扰，导致快速反射镜的视轴稳定性下降，因此在控制快速反射镜运动需要能够对多源干扰准确估计和有效抑制的控制方法[17-18]。同时，压电陶瓷存在迟滞、蠕变特性，这种由驱动元件材料引起的非线性特性增加了控制方法设计的复杂程度[14]。
本研究针对柔性机构构型级数与放大比之间的关系开展了定量分析，得出了嵌套级数的选择依据。针对不同构型方案的固有频率和放大比进行仿真分析，得出了三级混合构型的设计方案。开展了柔性机构离散化处理，构建了柔性机构的通用动力刚度模型，得出柔性机构结构参数与快速反射镜偏转角度的映射关系。在此基础上，对快速反射镜柔性机构关键尺寸参数进行优化，以快速反射镜偏转角度最大化为优化目标，得到优化参数与偏转角度及固有频率的关系。为快速反射镜的设计以及柔性铰链等单元的参数优化提供了理论依据。与国内外同类研究相比，该机构可以在保证较高一阶固有频率的基础上实现100 mrad机械偏转角度。
1. 压电驱动快速反射镜的工作原理
快速反射镜通过PEAs驱动柔性机构引导平面反射镜快速摆动实现光束指向的精准调控，其工作原理如图 1所示。图 1(b)表示在驱动力±Fx和±Fy等距分布于反射镜底部，图 1(a)表示在驱动力作用下反射镜偏转α（即机械偏转角度），反射光线则由l1偏转至l2，偏转角为β（即光学偏转角度）。
2. 三级混合柔性机构构型设计
对快速反射镜输出偏转角和带宽影响最大的部分是支撑结构（柔性机构），其主要常见材料有钛合金（TC4）、镁合金（AZ91）、铝合金（AL7075）、低锰弹簧钢（65Mn）等。本文以上述材料为选材目标，以一级桥式放大机构为例，使用ANSYS Workbench软件对构型进行分析，设置柔性机构材料如表 1所示，逐一比较快速反射镜采用这些材料时的各项参数。
表 1 柔性机构材料各项参数Table 1. Material parameters of flexible mechanismMaterial Elastic modulus/GPa Ultimate strength /MPa Yield limit /MPa Magnificationratio (R) Natural frequency/Hz Titanium alloy(TC4) 117 902 824 1.943 739.66 Magnesium alloy(AZ91) 45 230 160 1.943 810.62 Aluminium alloy(AL7075) 71 572 503 1.944 813.73 Low manganese spring steel(65Mn) 197 980 785 1.945 827.33 如表 1所示，具有最大放大比的材料是低锰弹簧钢（65Mn），但是低锰弹簧钢加工前需要热处理，同时该材料在淬火后容易产生裂纹；钛合金（TC4）具有较大弹性模量，但是分析结果表明其固有频率较低；镁合金（AZ91）的弹性模量、强度极限和屈服极限这3项参数较低，不适合本文的柔性放大机构；与其它材料相比，铝合金具有高放大比、高带宽、高弹性模量和无需热处理的优势，因此本文采用铝合金（AL7075）加工快速反射镜支撑结构。
柔性铰链主要分为杆式构型和桥式构型，其中杆式构型的放大比受杠杆尺寸影响较大，单级杆式构型在保证其放大比前提下难以兼顾杠杆尺寸。与杠杆机构相比，桥式机构具有结构紧凑且无寄生位移的优势。由于单级构型可提供的放大比有限，在快速反射镜柔性机构设计过程中通常采用多级构型。然而，过多放大构型的多级嵌套组合会导致结构尺寸和输入刚度的增大，因此在设计过程中需要首先考虑嵌套级数和构型方式。
首先，开展柔性机构的级数分析。为保证结构紧凑，初步设定桥式构型与杆式构型的每一级构型的主要尺寸如表 2所示，其构型如图 2所示。
表 2 各级构型的主要参数Table 2. The main parameters of each configurationParameter Lever type configuration Bridge type configuration θ/° - 13.5 L/mm 15 18 H/mm 5 5 t/mm 0.8 0.8 h/mm 2.5 - PEAs驱动多级柔性机构过程中，动力源于PEAs逆压电作用产生的驱动力，在该驱动力作用下第一级机构（由PEAs直接驱动的柔性铰链）发生弹性形变输出位移，该位移使后一级机构产生弹性形变并逐级向后驱动。可以发现，前一级机构的输出力是后一级机构的驱动力，而前一级机构的输出位移受到后一级机构的阻滞。因此，多级柔性机构是单向耦合的。构建柔性机构阻滞模型需要完成精确的力学建模和复杂的积分运算，工作量巨大。因此在确定柔性机构级数时通常依赖于设计者的经验，缺乏级数与柔性机构输出性能之间的定量分析。如图 3所示，本文基于有限元理论，针对桥式构型和杆式构型级数与柔性机构输出放大比之间关系分别开展了定量分析。
![]()
图 3 两类构型多级放大比对比Figure 3. Comparison of multi-stage amplification ratios of two types of configurations如图 3所示，一级桥式构型放大比与一级杆式构型放大比较为接近（分别为3.9、3.5）；在两级构型中，桥式构型放大比到达峰值（8.6），杆式构型放大比（11.0）优于桥式构型。在三级构型中，桥式构型放大比产生较大衰减，杆式构型放大比到达峰值（12.3）；在四级及以上构型中，桥式构型和杆式构型放大比均出现持续衰减。因此，采用柔性机构嵌套级数为三级。
针对三级柔性机构四种构型方案的固有频率和放大比进行分析，分析结果如图 4所示。图 4(a)为三级杆式构型，该结构具有较高的固有频率和放大比。然而，纯杆式构型很难保证柔性机构的紧凑性。图 4(b)为一级桥式构型与两级杆式构型组合，其固有频率和放大比均低于方案(a)。图 4(c)为两级桥式构型与一级杆式构型相结合的设计方案，该方案为压电驱动器预留足够的安装空间且具有20.1倍的位移放大比和较高的一阶固有频率。图 4(d)为三级桥式构型，其一阶固有频率和放大比都很低。因此，本文采用了两级桥式构型与一级杆式构型相结合的设计方案。
快速反射镜整体机构如图 5所示，在两级桥式放大机构之间放置PEAs，由PEAs直接输出位移，两级桥式放大构型与杆式构型相连，经杆式机构放大，在光学反射镜底部实现输出。由于快速反射镜驱动组件在装置底部通过柔性铰链相连，所以当快速反射镜发生偏转时，可能存在交叉耦合现象。采取如图 5所示沿圆周方向均布柔性机构的方式减小交叉耦合现象。
3. 快速反射镜柔性机构建模及动力学分析
如图 5所示，三级混合柔性机构通过柔性直梁与反射镜底座相连，组成一个多自由度复杂机构。针对这类复杂机构的动态响应分析，首先需要对机构进行离散化处理，建立每个柔性铰链和刚体的动力学模型，最后建立整个机构的动力学模型。
将构型离散化后可知构型由柔性直梁、集中质量和刚体组成，进一步将构型的柔性直梁进行顺序编号从(1)~(44)，固定端编号为(0)，而所有的柔性直梁是由1到25个节点连接，其中节点3、4、9、10、15、16、21和22为质量为m1的集中质量，节点6、12、18和24为质量为m2的刚体，节点25为质量为m3的刚体。如图 6所示，将第一组柔性放大机构与输出平台离散化为柔性直梁、刚体和集中质量，其余3组柔性放大机构离散化类同于第一组。
3.1 柔性直梁动力学分析
对柔性机构的动态分析中首先需要对柔性铰链进行分析，而本文构型所包含的柔性铰链均为柔性直梁。如图 7所示，柔性直梁的两个节点j和k包含6个自由度，分别是$ x_j^{\rm{e}}(\omega ) = \left[ {{u_j};{v_j};{w_j};{\alpha _j};} \right.{\beta _j};\left. {{\gamma _j}} \right] $；和$ x_k^{\text{e}}(\omega ) = \left[ {{u_k};{v_k};{w_k};{\alpha _k};{\beta _k};{\gamma _k}} \right] $，$ \left[ {{u_j};} \right.{v_j};\left. {{w_j}} \right] $和$\left[ {{u_k};{v_k};{w_k}} \right]$表示沿坐标轴方向的位移，$\left[ {{\alpha _j};} \right.{\beta _j};\left. {{\gamma _j}} \right]$和$\left[ {{\alpha _k};{\beta _k};{\gamma _k}} \right]$表示垂直于坐标轴方向的转角。
基于矩阵位移法，柔性单元的节点力$F_j^{\text{e}}(\omega ) = \left[ {{F_{xj}};{F_{yj}};{F_{zj}};{M_{xj}};{M_{yj}};{M_{zj}}} \right] \text{，}F_k^{\text{e}}(\omega ) = \left[ {{F_{xk}};{F_{yk}};} \right.{F_{kj}};{M_{kj}};{M_{kj}};$$\left. {{M_{kj}}} \right]$和节点位移$x_j^{\text{e}}(\omega ), x_k^{\text{e}}(\omega )$满足广义胡克定律，即：
$$ \left\{ {\begin{array}{*{20}{c}} {F_j^{\text{e}}\left( \omega \right)} \\ {F_k^{\text{e}}\left( \omega \right)} \end{array}} \right\} = {{\boldsymbol{D}}^{\text{e}}}\left( \omega \right) \cdot \left\{ {\begin{array}{*{20}{c}} {x_j^{\text{e}}\left( \omega \right)} \\ {x_k^{\text{e}}\left( \omega \right)} \end{array}} \right\} $$ (1) 式(1)中：De(ω)为一个柔性单元的动力刚度矩阵。
进一步分析该柔性单元的动力刚度矩阵，即：
$$ {{\boldsymbol{D}}^{\text{e}}}\left( \omega \right) = \left[ {\begin{array}{*{20}{c}} {{d_1}}&0&0&0&0&0&{{d_5}}&0&0&0&0&0 \\ {}&{{d_2}\left( {{I_z}} \right)}&0&0&0&{{d_3}\left( {{I_z}} \right)}&0&{{d_6}\left( {{I_z}} \right)}&0&0&0&{{d_7}\left( {{I_z}} \right)} \\ {}&{}&{{d_2}\left( {{I_y}} \right)}&0&{ - {d_3}\left( {{I_y}} \right)}&0&0&0&{{d_6}\left( {{I_y}} \right)}&0&{ - {d_7}\left( {{I_y}} \right)}&0 \\ {}&{}&{}&{{d_9}}&0&0&0&0&0&{{d_{10}}}&0&0 \\ {}&{}&{}&{}&{{d_4}\left( {{I_y}} \right)}&0&0&0&{{d_7}\left( {{I_y}} \right)}&0&{{d_8}\left( {{I_y}} \right)}&0 \\ {}&{}&{}&{}&{}&{{d_4}\left( {{I_z}} \right)}&0&{ - {d_7}\left( {{I_z}} \right)}&0&0&0&{{d_8}\left( {{I_z}} \right)} \\ {}&{}&{}&{}&{}&{}&{{d_1}}&0&0&0&0&0 \\ {}&{}&{}&{}&{}&{}&{}&{{d_2}\left( {{I_z}} \right)}&0&0&0&{ - {d_3}\left( {{I_z}} \right)} \\ {}&{}&{}&{}&{{\rm{sym}}}&{}&{}&{}&{{d_2}\left( {{I_y}} \right)}&0&{{d_3}\left( {{I_y}} \right)}&0 \\ {}&{}&{}&{}&{}&{}&{}&{}&{}&{{d_9}}&0&0 \\ {}&{}&{}&{}&{}&{}&{}&{}&{}&{}&{{d_4}\left( {{I_y}} \right)}&0 \\ {}&{}&{}&{}&{}&{}&{}&{}&{}&{}&{}&{{d_4}\left( {{I_z}} \right)} \end{array}} \right] $$ (2) 式(2)中：dq(q＝1, 2, …, 10)是De(ω)的系数；dq（Iy or Iz）表示该系数是和惯性矩相对于y轴或z轴的惯性矩（Iy＝(t3h)/12或Iz＝(t3h)/12）相关的函数。对于dq(q＝1, 2, …, 10)选取二阶泰勒展开式计算，即：
$$ {d_1}{\text{ = }}\frac{{EA}}{l}\left( {1 - \frac{1}{3}{\alpha ^2} - \frac{1}{{45}}{\alpha ^4} - \cdots } \right) $$ (3) $$ {d_2}{\text{ = }}\frac{{EI}}{{{l^3}}}\left( {12 - \frac{{13}}{{35}}{\beta ^4} - \frac{{59}}{{161700}}{\beta ^8} - \cdots } \right) $$ (4) $$ {d_3}{\text{ = }}\frac{{EI}}{{{l^2}}}\left( {6 - \frac{{11}}{{210}}{\beta ^4} - \frac{{223}}{{2910600}}{\beta ^8} - \cdots } \right) $$ (5) $$ {d_4}{\text{ = }}\frac{{EI}}{l}\left( {4 - \frac{1}{{105}}{\beta ^4} - \frac{{71}}{{4365900}}{\beta ^8} - \cdots } \right) $$ (6) $$ {d_5}{\text{ = }} - \frac{{EA}}{l}\left( {1 + \frac{1}{6}{\alpha ^2} + \frac{7}{{360}}{\alpha ^4} + \cdots } \right) $$ (7) $$ {d_6}{\text{ = }} - \frac{{EI}}{{{l^3}}}\left( {12 + \frac{9}{{70}}{\beta ^4} + \frac{{1279}}{{3880800}}{\beta ^8} + \cdots } \right) $$ (8) $$ {d_7}{\text{ = }}\frac{{EI}}{{{l^2}}}\left( {6 + \frac{{13}}{{420}}{\beta ^4} + \frac{{1681}}{{23284800}} + \cdots } \right) $$ (9) $$ {d_8}{\text{ = }}\frac{{EI}}{l}\left( {2 + \frac{1}{{140}}{\beta ^4} + \frac{{1097}}{{69854400}}{\beta ^8} + \cdots } \right) $$ (10) $$ {d_9}{\text{ = }}\frac{{G{I_x}}}{l}\left( {1 - \frac{1}{3}{\gamma ^2} - \frac{1}{{45}}{\gamma ^4} - \cdots } \right) $$ (11) $$ {d_{10}}{\text{ = }} - \frac{{G{I_x}}}{l}\left( {1 + \frac{1}{6}{\gamma ^2} + \frac{7}{{360}}{\gamma ^4} + \cdots } \right) $$ (12) 式(3)~式(12)中：α2＝ω2l2ρ/E；β4＝ω2l4ρA/EI；γ2＝ω2l2ρ/G。其中E为杨氏模量；G为剪切模量；ρ表示密度；A为横截面积；ω表示频率。
式(2)是在其局部坐标系下的动力刚度矩阵，但在动力学分析中需要将其转换到参考坐标系中。对于第i(i＝1, 2, …, 44)个柔性直梁其坐标变换分析如下：
$$ {{\boldsymbol{D}}_i}\left( \omega \right) = {\boldsymbol{R}}_i^{\rm{T}} \cdot {{\boldsymbol{D}}^{\text{e}}}\left( \omega \right) \cdot {{\boldsymbol{R}}_i} $$ (13) $$ {{\boldsymbol{R}}_i} = \left[ {\begin{array}{*{20}{c}} {{{\boldsymbol{\lambda}} _i}}&{{{\boldsymbol{O}}_{3 \times 3}}}&{{{\boldsymbol{O}}_{3 \times 3}}}&{{{\boldsymbol{O}}_{3 \times 3}}} \\ {{{\boldsymbol{O}}_{3 \times 3}}}&{{{\boldsymbol{\lambda}} _i}}&{{{\boldsymbol{O}}_{3 \times 3}}}&{{{\boldsymbol{O}}_{3 \times 3}}} \\ {{{\boldsymbol{O}}_{3 \times 3}}}&{{{\boldsymbol{O}}_{3 \times 3}}}&{{{\boldsymbol{\lambda}} _i}}&{{{\boldsymbol{O}}_{3 \times 3}}} \\ {{{\boldsymbol{O}}_{3 \times 3}}}&{{{\boldsymbol{O}}_{3 \times 3}}}&{{{\boldsymbol{O}}_{3 \times 3}}}&{{{\boldsymbol{\lambda}} _i}} \end{array}} \right] $$ (14) $$ {{\boldsymbol{\lambda}} _i} = \left[ {\begin{array}{*{20}{c}} {\cos \left( {{x_i}, x} \right)}&{\cos \left( {{x_i}, y} \right)}&{\cos \left( {{x_i}, z} \right)} \\ {\cos \left( {{y_i}, x} \right)}&{\cos \left( {{y_i}, y} \right)}&{\cos \left( {{y_i}, z} \right)} \\ {\cos \left( {{z_i}, x} \right)}&{\cos \left( {{z_i}, y} \right)}&{\cos \left( {{z_i}, z} \right)} \end{array}} \right] $$ (15) 式(14)中：O3×3是维度为3×3的0矩阵。式(15)矩阵中每一项为第i个柔性直梁局部坐标系与参考坐标系各坐标轴之间的余弦值。
第i个柔性直梁经过坐标变换，在参考坐标系中的力与位移的关系可表示为式(16)：
$$ \left\{ {\begin{array}{*{20}{c}} {{F_{i, j}}} \\ {{F_{i, k}}} \end{array}} \right\} = {{\boldsymbol{D}}_i} \cdot \left\{ {\begin{array}{*{20}{c}} {{x_{i, j}}} \\ {{x_{i, k}}} \end{array}} \right\} = \left[ {\begin{array}{*{20}{c}} {{k_{i, 1}}}&{{k_{i, 2}}} \\ {{k_{i, 3}}}&{{k_{i, 4}}} \end{array}} \right] \cdot \left\{ {\begin{array}{*{20}{c}} {{x_{i, j}}} \\ {{x_{i, k}}} \end{array}} \right\} $$ (16) 式中：$ \left\{ {{F_{i, j}}, {F_{i, k}}} \right\} $和$ \left\{ {{x_{i, j}}, {x_{i, k}}} \right\} $是参考坐标系下第i个柔性直梁的节点力和节点位移。ki, 1、ki, 2、ki, 3和ki, 4是动力刚度矩阵Di的子矩阵。
3.2 刚性体和集中质量动力学分析
刚性体（输出平台和杠杆放大机构的刚性梁）和集中质量（两级桥式放大构型的连接部分）也是分析构型动力学的重要组成单元，对于第n（n＝3、4、6、9、10、12、15、16、18、21、22、24、25）个节点为刚体或集中质量的分析如式(17)、(18)和(19)所示：
$$ {{\boldsymbol{M}}_n}\left( \omega \right) = - {\omega ^2} \cdot \left[ {\begin{array}{*{20}{c}} {{{\boldsymbol{M}}_{3 \times 3}}}&{{{\boldsymbol{O}}_{3 \times 3}}} \\ {{{\boldsymbol{O}}_{3 \times 3}}}&{{{\boldsymbol{J}}_{n, 3 \times 3}}} \end{array}} \right] $$ (17) $$ {{\boldsymbol{M}}_{3 \times 3}} = \left[ {\begin{array}{*{20}{c}} m&0&0 \\ 0&m&0 \\ 0&0&m \end{array}} \right] $$ (18) $$ {{\boldsymbol{J}}_{n, 3 \times 3}} = {\boldsymbol{\lambda}} _n^{\rm{T}} \cdot \left[ {\begin{array}{*{20}{c}} {{J_x}}&0&0 \\ 0&{{J_y}}&0 \\ 0&0&{{J_z}} \end{array}} \right] \cdot {{\boldsymbol{\lambda}} _n} $$ (19) 式(17)、(18)和(19)中：Mn(ω)表示第n个节点为刚性体或集中质量的动力刚度矩阵；m是该单元的质量，Jx、Jy、Jz是该单元相对于质心的惯性矩。式(19)中坐标变换矩阵λn与式(15)λi计算方法一致。
3.3 柔性机构的动态响应模型
已完成在参考坐标系下所有柔性直梁、集中质量和刚体的动力刚度矩阵，进一步建立所有节点力的平衡方程组，表示为节点位移的形式，如式(20)所示：
$$ \left\{ {\begin{array}{*{20}{c}} { - {f_{{\rm{in}}, 1}} = \left( {{k_{1, 1}} + {k_{2, 1}}} \right) \cdot {x_1} + {k_{1, 2}} \cdot {x_3} + {k_{2, 2}} \cdot {x_4}} \\ {{f_{{\rm{in}}, 1}} = \left( {{k_{3, 4}} + {k_{4, 4}}} \right) \cdot {x_2} + {k_{3, 3}} \cdot {x_3} + {k_{4, 3}} \cdot {x_4}} \\ {0 = {k_{1, 3}} \cdot {x_1} + {k_{3, 2}} \cdot {x_2} + \left( {{k_{1, 4}} + {k_{3, 1}} + {k_{5, 1}} + {k_{8, 1}} + {M_3}} \right) \cdot {x_3} + {k_{5, 2}} \cdot {x_5}} \\ {0 = {k_{2, 3}} \cdot {x_1} + {k_{4, 2}} \cdot {x_2} + \left( {{k_{2, 4}} + {k_{4, 1}} + {k_{6, 4}} + {k_{7, 4}} + {M_4}} \right) \cdot {x_4} + {k_{6, 3}} \cdot {x_5}} \\ {0 = {k_{5, 3}} \cdot {x_3} + {k_{6, 2}} \cdot {x_4} + \left( {{k_{5, 4}} + {k_{6, 1}} + {k_{9, 1}}} \right) \cdot {x_5} + {k_{9, 2}} \cdot {x_6}} \\ {0 = {k_{9, 3}} \cdot {x_5} + \left( {{k_{9, 4}} + {k_{10, 4}} + {k_{41, 1}} + {M_6}} \right) \cdot {x_6} + {k_{41, 2}} \cdot {x_{25}}} \\ { \cdots \cdots } \\ {{f_{\rm{o}}}\left( \omega \right) = {k_{41, 3}} \cdot {x_6} + {k_{42, 3}} \cdot {x_{12}} + {k_{43, 3}} \cdot {x_{18}} + {k_{44, 3}} \cdot {x_{24}} + \left( {{k_{41, 4}} + {k_{42, 4}} + {k_{43, 4}} + {k_{44, 4}}} \right) \cdot {x_{25}}} \end{array}} \right. $$ (20) 由于构型中压电陶瓷驱动器输入力均沿x轴方向，所以式(20)中$ {f_{in, s}}\left( \omega \right) = \left[ {{f_{in, s}};0;0;0;0;0} \right] $(s＝1, 2, 3, 4), Mn已由式(18)求出，$ \left\{ {{F_{i, j}}, {F_{i, k}}} \right\} $已由式(16)求出。fo(ω)是输出平台的虚拟力，只有在求输出刚度时不为0。
柔性机构的通用动力刚度模型统一表示为：
$$ \left\{ {F\left( \omega \right)} \right\} = \left[ {{\boldsymbol{D}}\left( \omega \right)} \right] \cdot \left\{ {X\left( \omega \right)} \right\} $$ (21) 进一步将式(21)表示为柔性机构的通用动力刚度模型，即式(22)：
$$ \left\{ {\begin{array}{*{20}{c}} { - {f_{in, 1}}} \\ {{f_{in, 1}}} \\ 0 \\ \vdots \\ {{f_{\rm{o}}}\left( \omega \right)} \end{array}} \right\} = \left[ {\begin{array}{*{20}{c}} {{k_{1, 1}} + {k_{2, 1}}}&0&{{k_{1, 2}}}&{{k_{2, 2}}}&0& \cdots &0 \\ 0&{{k_{3, 4}} + {k_{4, 4}}}&{{k_{3, 3}}}&{{k_{4, 3}}}&0& \cdots &0 \\ {{k_{1, 3}}}&{{k_{3, 2}}}&{{k_{1, 4}} + {k_{3, 1}} + {k_{5, 1}} + {k_{8, 1}} + {M_3}}&0&{{k_{5, 2}}}& \cdots &0 \\ \vdots & \vdots & \vdots & \vdots & \vdots & \ddots & \vdots \\ 0&0&0&0&0& \ldots &{{k_{41, 4}} + {k_{42, 4}} + {k_{43, 4}} + {k_{44, 4}}} \end{array}} \right] \cdot \\ \left\{ {\begin{array}{*{20}{c}} {{x_1}} \\ {{x_2}} \\ {{x_3}} \\ \vdots \\ {{x_{25}}} \end{array}} \right\} $$ (22) 由式(22)可知输入$ \left\{ {F\left( \omega \right)} \right\} $时，输出位移为$ \left\{ {X\left( \omega \right)} \right\} $，$ \left\{ {X\left( \omega \right)} \right\} $包括输出平台的输出位移$ {x_{25}} = \left[ {{u_{25}};{v_{25}};{w_{25}};{\alpha _{25}};{\beta _{25}};{\gamma _{25}}} \right] $。构型固有频率为机构整体动力刚度矩阵$ \left[ {{\boldsymbol{D}}\left( \omega \right)} \right] $行列式为0的根。如图 8所示，纵坐标表示动力刚度矩阵$ \left[ {{\boldsymbol{D}}\left( \omega \right)} \right] $参数，横坐标表示柔性机构固有频率。当$ \left[ {{\boldsymbol{D}}\left( \omega \right)} \right] = 0 $时，一阶固有频率为309 Hz，与有限元分析结果315.49 Hz的误差为1.9%，二阶固有频率为322 Hz，与有限元分析结果315.73 Hz的误差为2.22%。
3.4 快速反射镜偏转角度
由于输出平台沿x轴、y轴方向位移和绕z轴偏转角可忽略不计，所以输出平台偏转角只与输出平台绕x轴的偏转角α25，绕y轴的偏转角β25，沿z轴的位移ω25相关，由此可以得到，偏转后输出平台平面上有三点p1＝(0; cosα25; 0; sinα25+w25)，p2＝(cosβ25; 0; sinβ25+w25)，p3＝(0; 0; w25)，则偏转后平台的一个法向量$ \overrightarrow {{{\boldsymbol{n}}_1}} $为：
$$ \overrightarrow {{{\boldsymbol{n}}_1}} = {\left[ \begin{gathered} - \cos {\alpha _{25}} \cdot \sin {\beta _{25}} \hfill \\ - \cos {\beta _{25}} \cdot \sin {\alpha _{25}} \hfill \\ \cos {\beta _{25}} \cdot \left( {\sin {\alpha _{25}} + {w_{25}}} \right) \hfill \\ \end{gathered} \right]^{\rm T}} $$ (23) 若平台未偏转，只沿z轴位移w25，则平台的一个法向量为$ \overrightarrow {{{\boldsymbol{n}}_2}} = \left[ {0, 0, c} \right] $，c是常数，进一步可得出偏转后平台偏转角αp为：
$$ {\alpha _p} = \arccos \frac{{\left| {{{\vec {\boldsymbol{n}}}_1} \cdot {{\vec {\boldsymbol{n}}}_2}} \right|}}{{\left| {{{\vec {\boldsymbol{n}}}_1}} \right| \cdot \left| {{{\vec {\boldsymbol{n}}}_2}} \right|}} $$ (24) 4. 三级混合柔性机构关键尺寸参数优化设计
在此基础上对快速反射镜柔性机构关键尺寸参数进行优化，选择桥式放大机构柔性臂的夹角θ，长度l，宽度t和高度h为待优化参数，以快速反射镜偏转角度最大化为优化目标，得到优化参数与偏转角度和固有频率的关系如图 9~图 12所示。
![]()
图 9 柔性臂的夹角与固有频率和偏转角之间的关系Figure 9. The relationship between θ and ω, deflection angle of flexible mechanism![]()
图 10 柔性臂的长度与固有频率和偏转角之间的关系Figure 10. The relationship between l and ω, deflection angle of flexible mechanism![]()
图 11 柔性臂的厚度与固有频率和偏转角之间的关系Figure 11. The relationship between t and ω, deflection angle of flexible mechanism![]()
图 12 柔性臂的高度与固有频率和偏转角之间的关系Figure 12. The relationship between h and ω, deflection angle of flexible mechanism如图 9所示，柔性臂的夹角变化范围为11°~25°，其他参数固定不变。红色曲线表示柔性臂夹角与快速反射镜偏转角之间的关系，随着柔性臂夹角增加，快速反射镜偏转角呈现先增后减趋势，当夹角θ＝18°时，快速反射镜偏转角度到达最大值。黑色曲线表示柔性臂夹角与柔性机构固有频率之间的关系。随着柔性臂夹角增加，固有频率呈现先减后增趋势，当夹角θ＝20°时，固有频率到达峰值最小值。
如图 10~图 12所示，分别对柔性臂长度l，宽度t和高度h与快速反射镜偏转角之间的关系进行分析。可以发现，随着控制变量参数值增加，快速反射镜偏转角都呈现出先增后减的趋势。结合上述分析，选取参数应靠近最佳参数，同时考虑到结构的固有频率ω不宜过低、结构紧凑等因素，本文最终选取优化结果为：θ＝18°、l＝20 mm、t＝0.9 mm、h＝6.5 mm、ω＝336 Hz、αp＝50 mrad。
对快速反射镜进行仿真分析，设PEAs输出最大位移为16 μm，则柔性机构位移仿真结果如图 13所示，根据输出位移最大值，可以求出最大偏转角αp为100.8 mrad。模态仿真分析如图 14所示，一阶固有频率为336.4 Hz，二阶固有频率为336.63 Hz。
如表 3所示，将国内外同类研究与本研究成果进行对比可知，本文设计的压电驱动快速反射镜具有结构紧凑、偏转角度大的优势。
表 3 快速反射镜关键参数对比Table 3. Comparison of key parameters of fast steering mirrorReference Piezoelectric actuator length /mm Number of deflection degrees of freedom Mechanical deflection range around x axis/mrad Mechanical deflection range around y axis /mrad First natural frequency /Hz Ref. [10] - 1 - 24 1872 Ref. [11] - 1 - 52.3 180 Ref. [16] - 2 4.8 4.8 6700 Ref. [13] - 2 21 21 349 Ref. [14] 72 2 52.93 55.41 105.45 This paper 36 2 100 100 336 5. 总结与展望
本文针对柔性机构构型级数与放大比之间的关系开展了定量分析，得出了嵌套级数的选择依据。针对不同构型方案的固有频率和放大比进行仿真分析，得出了三级混合构型的设计方案。进一步将整体构型离散化为柔性铰链、刚性体和集中质量等基本单元，并计算各单元在参考坐标系中的刚度矩阵。结合矩阵位移法，建立了整个柔性机构的动态响应模型，为柔性铰链、刚性体等单元的参数优化提供了理论依据。最后，对柔性机构开展了模态分析，验证了动态响应模型的能够较为准确地描述快速反射镜的动态行为。与国内外同类研究相比，该机构可以在保证较高一阶固有频率的基础上实现100 mrad机械偏转角度。本文侧重于大转角快速反射镜柔性机构的优化设计与动态分析，针对压电驱动快速反射镜的控制方法研究将在后续工作中开展。
-
![]()

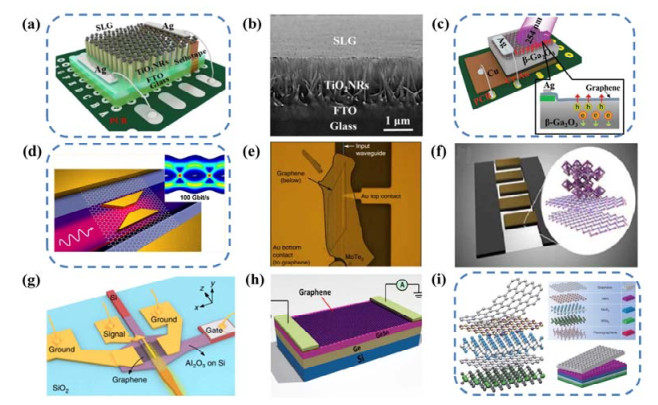

图 2 石墨烯异质结的结构：(a) 单层石墨烯（SLG）与TiO2纳米棒异质结光电探测器[28]；(b) SLG与TiO2纳米棒异质结截面SEM图[28]；(c) β-Ga2O3与石墨烯异质结光电探测器[33]；(d) 石墨烯纳米沟道光电探测器[34]；(e) 石墨烯/MoTe2异质结光电探测器[35]；(f) 石墨烯/钙钛矿异质结光电探测器[36]；(g) 石墨烯/Si异质结光电探测器[37]；(h) 石墨烯/GeSn异质结光电探测器[38]；(i) 范德瓦尔斯异质结叠放结合示意图[39]
Figure 2. The structures of graphene heterojunctions: (a) Single-layer graphene (SLG) and TiO2 nanorod heterojunction photodetector[28]; (b) Cross-section SEM image of SLG and TiO2 nanorod heterojunction[28]; (c) β-Ga2O3 and graphene heterojunction photodetector[33]; (d) Graphene nanochannel photodetector[34]; (e) Graphene/MoTe2 heterojunction photodetectors[35]; (f) Graphene/perovskite heterojunction photodetectors[36]; (g) Graphene/Si heterojunction photodetector[37]; (h) Graphene/GeSn heterojunction photodetector[38]; (i) Diagram of van der Waals heterojunction stacking and combining[39]
![]()
图 1 几种石墨烯结构、形貌的表征图：(a) CVD制备石墨烯的高分辨透射电镜（high resolution transmission electron microscopy, HRTEM）图像[15]；(b) 石墨烯纳米片的扫描电镜（scanning electron microscopy, SEM）形貌图[16]；(c) 石墨烯量子点的TEM表征图[17]；(d) 石墨烯纳米线的SEM形貌图[18]；(e) 外延生长石墨烯的莫尔图案[19]；(f) 石墨烯纳米棒的SEM形貌图[20]；(g) 石墨烯/TiO2/Ag团簇的SEM表征图[21]；(h) 石墨烯/TiO2/Ag团簇的TEM表征图[21]；(i) CVD石墨烯薄膜的实物图[22]
Figure 1. Characterizations of several graphene structures and morphologies: (a) HRTEM image of CVD graphene[15]; (b) SEM image of graphene nanosheets[16]; (c) TEM image of graphene quantum dots[17]; (d) SEM image of graphene nanowires[18]; (e) Epitaxially grown graphene Moiré pattern[19]; (f) SEM image of graphene nanorods[20]; (g) SEM image of graphene/TiO2/Ag clusters[21]; (h) TEM image of graphene/TiO2/Ag clusters; (i) Optical image of CVD transferred graphene film[22]
![]()
图 3 石墨烯异质结对能带结构的调制：(a) 石墨烯/碳纳米管（CNT）异质结场效应晶体管器件结构示意图[40]；(b) 石墨烯/碳纳米管异质结能带图，其中VGS表示出了其能带的弯曲变化情况[40]；(c) 石墨烯-碳纳米管异质结电容随电压变化图[40]；(d) WS2/石墨烯异质结器件示意图[41]；(e) WS2/石墨烯异质结器件中低于WS2能级的两种不同的载流子激发机制[41]；(f) 加入不同层数石墨烯的瞬态吸收光谱图[41]；(g) MoS2/graphene/WSe2PGN异质结的器件结构示意图[42]；(h) MoS2/graphene/WSe2异质的能带示意图，其中画出了载流子运输机制[42]；(i) MoS2/graphene/WSe2PGN异质结器件的响应率和探测率随波长的变化图[42]
Figure 3. Modulations of the energy band structure of graphene heterojunctions: (a) Schematic diagram of graphene/carbon nanotube (CNT) heterojunction field effect transistor device structure[38]; (b) Diagram of graphene/carbon nanotube heterojunction energy band, where VGS shows the bending change of its energy band[38]; (c) C-V curves of graphene/carbon nanotube heterojunction[38]; (d) Device structure of WS2/graphene heterojunction[41]; (e) Two carrier excitation mechanisms below the WS2 band gap of WS2/ graphene heterojunction[41]; (f) TA spectrum with different layer graphene[41]; (g) Device structure of MoS2/graphene/WSe2 PGN heterojunction[42]; (h) Energy band of the MoS2/graphene/WSe2 heterojunction and carrier transport mechanisms[42]; (i) R-λ and D*-λ curves of MoS2/graphene/WSe2 PGN heterojunction[42]
![]()
图 4 石墨烯异质结的光电特性：(a) ZnO纳米棒的SEM图[43]；(b) 覆盖有石墨烯的ZnO纳米棒的Mapping图[43]；(c) 加入石墨烯与未加石墨烯样品的PL光谱图[43]；(d) CsPbBr3/石墨烯异质结的器件示意图[44]；(e)和(f)分别为CsPbBr3/石墨烯异质结产生的PPC、NPC效应的能带解析图[44]；(g) CsPbBr3/石墨烯异质结在紫外光照下的光电响应图谱[44]；(h) CsPbBr3/石墨烯异质结在不同的可见光波段下的光电响应图[44]
Figure 4. Optoelectronic characteristics of graphene heterojunctions: (a) SEM image of ZnO nanorods[43]; (b) Mapping images of ZnO nanorods covered with graphene[43]; (c) PL spectrum of samples with and without graphene[43]; (d) Structures of CsPbBr3/graphene heterojunction device[44]; (e) and (f) The energy band analysis diagrams of PPC and NPC effects of CsPbBr3/graphene heterojunctions[44]; (g) Photoelectric response of CsPbBr3/graphene heterojunctions under radiation of ultraviolet light[44]; (h) Photoelectric response of CsPbBr3/graphene heterojunction in different visible light bands[44]
![]()

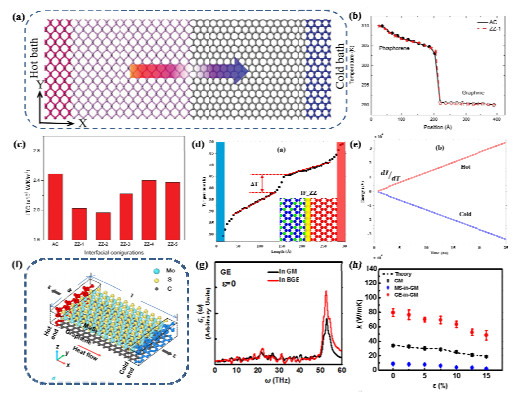

图 5 石墨烯异质结的热力、力学特性：(a) 磷烯/石墨烯异质结器件两端放置在冷场和热场的示意图[45]；(b) 磷烯/石墨烯异质结界面处温度特性[45]；(c) 室温下磷烯/石墨烯异质结在不同界面构型处的ITC变化情况[45]；(d) C3N/石墨烯异质结结区温度特性[46]；(e) C3N/石墨烯异质结器件能量-时间曲线[46]；(f) MoS2/石墨烯器件结构图[47]；(g) MoS2/石墨烯异质结构中和无张力的双层石墨烯中石墨烯的面内声子谱Gi (ω)的比较[47]；(h)MoS2/石墨烯异质结的热声子对比[47]
Figure 5. Thermal and mechanical properties of graphene heterojunctions: (a) The schematic diagram of phosphorene/graphene heterojunction device, which ends are placed at the cold and hot fields[45]; (b) The temperature characteristics of the phosphorene/grapheme heterojunction interfaces[45]; (c) ITC changes of phosphorene/grapheme heterojunction with different interfacial configurations at room temperature[45]; (d) Temperature characteristics of junction area of C3N/graphene heterojunction[46]; (e) Energy-Time curves of C3N/graphene heterojunction device[46]; (f) Structure diagram of MoS2/graphene device[47]; (g) Comparison of in-plane phonon spectrum Gi(ω) of graphene in MoS2/graphene heterostructure and in bilayer graphene without tension[47]; (h) Comparisons of thermophonons in MoS2/graphene heterojunction[47]
![]()
图 6 石墨烯异质结器件的结构和表征：(a) 石墨烯/MoS2/石墨烯垂直异质结构示意图[64]；(b) 石墨烯/MoS2/石墨烯器件的光学照片[64]；(c) SiC/Graphene异质结器件示意图[67]；(d) 石墨烯纳米片光电器件示意图，右图为单元纳米片的截面SEM图[65]；(e) Bi2Te3/石墨烯异质结器件示意图[66]；(f) 石墨烯/GeOI异质结近红外光电探测器的结构示意图和原子力显微镜（Atom force microscopy, AFM）表征图及石墨烯/GeOI肖特基结能带结构[68]；(g) GaAs/Al2O3/Graphene器件结构示意图[69]；
Figure 6. Structures and characterizations of grapheme heterojunction devices: (a) Schematic diagram of the vertical hetero structure of graphene/MoS2/graphene[64]; (b) Optical photo of graphene/MoS2/graphene device[64]; (c) Structure diagram of SiC/graphene heterojunction device[67]; (d) Diagram of graphene nanosheet photoelectric device, the right picture is the cross-sectional SEM image of the unit nanosheet[65]; (e) Structure diagram of Bi2Te3/graphene heterojunction device[66]; (f) Schematic illustration of the graphene/GeOI heterojunction near infrared photodetector, AFM image of the device and the energy band structure of graphene/GeOI Schottky junction[68]; (g) Structure diagram of GaAs/Al2O3/graphene device[69]
![]()
图 7 几种外延生长制备的石墨烯异质结器件：(a) 水热法组装WS2/石墨烯光电探测器示意图[62]；(b) WS2/Graphene异质结器件SEM图[62]；(c) 石墨烯外延生长的AFM图[61]；(d) 在石墨烯基底上气相沉积WS2的器件制备示意图[61]；(e) Si纳米线/石墨烯异质结样品TEM图[70]；(f) Si纳米线/石墨烯异质结器件Raman表征[70]；(g) Si纳米线/石墨烯异质结制备图[70]
Figure 7. Several graphene heterojunction devices prepared by epitaxial growth: (a) Diagram of WS2/Graphene photodetector prepared by hydrothermal method[62]; (b) SEM image of WS2/graphene heterojunction device[62]; (c) AFM image of graphene epitaxial growth[61]; (d) Diagram of device preparation by vapor deposition WS2 on graphene substrate[61]; (e) TEM image of Si nanowire/graphene heterojunction sample[70]; (f) Raman spectrum of Si nanowire/graphene heterojunction device[70]; (g) Diagram of preparation of Si nanowire/graphene heterojunction[70]
![]()
图 8 石墨烯异质结场效应管的研究进展：(a) WS2/graphene垂直异质结场效应管显微图像[71]；(b) 柔性透明衬底上的WS2/graphene异质结场效应管实物图[71]；(c) WS2/graphene异质结的对数I-V特性曲线[71]；(d) WSe2/graphene/WS2范德瓦尔斯异质结场效应管光电探测器[72]；(e) WSe2/graphene/WS2异质结结构图[72]；(f) WSe2/graphene/WS2与WSe2/WS2异质结的I-V曲线对比图[72]；(g) 石墨烯/Si范德瓦尔斯异质结中THz光谱产生过程示意图[73]；(h) 石墨烯/Si异质结发射的THz波幅与CW泵浦功率的关系图[73]；(i) 石墨烯/C60/石墨烯异质结场效应管示意图[74]
Figure 8. Research progresses of graphene heterojunction field effect transistors (FET): (a) Micrograph of WS2/ graphene vertical heterojunction FET[71]; (b) Photo of WS2/graphene heterojunction FET on flexible and transparent substrate[71]; (c) Log I-V curves of WS2/graphene heterojunction[71]; (d) WSe2/graphene/WS2 van der Waals (vdWs) heterojunction FET photodetector[72]; (e) Structure of WSe2/graphene/WS2 heterojunction[72]; (f) Comparison of I-V curves of WSe2/graphene/WS2with WSe2/WS2 hetero - junction[72]; (g) Schematic of the THz generation process from the graphene/Si vdWs heterostructure[73]; (h) Dependence of the graphene/Si heterojunction emitted THz amplitude on the CW pump power[73]; (i) Diagram of graphene/C60/graphene heterojunction FET[74]
![]()
图 9 石墨烯异质结在太阳能电池中的应用：(a) Al离子电池中MoSe2/N-石墨烯异质结结构电极[76]；(b) N-石墨烯调制Al离子电池测试[76]；(c) MoSe2/N-石墨烯异质结器件电容测试[76]；(d) 复合石墨烯太阳能电池器件结构示意图[78]；(e) MoS2/graphene异质结太阳能电池器件结构示意图[79]；(f) 石墨烯作为Si异质结p-i-n结构电极[80]；(g) 复合石墨烯太阳能电池器件的J-V曲线[78]；(h) MoS2/graphene异质结太阳能电池的J-V曲线[79]；(i) 有石墨烯的Si异质结p-i-n结构太阳能电池J-V曲线[80]
Figure 9. Applications of graphene heterojunctions in solar cells: (a) MoSe2/N-graphene heterojunction structure electrode in Al ion battery[76]; (b) Test of Al ion battery with N-graphene modulation[76]; (c) Capacitance test of MoSe2/N-graphene device[76]; (d) Schematic diagram of composited graphene solar cell device structure[78]; (e) Schematic diagram of MoS2/graphene heterojunction solar cell device structure[79]; (f) Graphene used as p-i-n structure electrode of Si heterojunction[80]; (g) J-V curves of composited graphene solar cell device[78]; (h) J-V curve of MoS2/graphene heterojunction solar cell[79]; (i) J-V curves of Si heterojunction p-i-n structure solar cell with graphene[80]
![]()
图 10 石墨烯异质结在光电探测器中的应用：(a) Graphene/PdSe2/Ge异质结光电探测器结构示意图[81]；(b) Graphene/n-Si异质结光电探测器结构示意图[82]；(c) Graphene/n-Si异质结光电探测器能带图[82]；(d) 非晶MgGaO/graphene异质结紫外光伏器件结构示意图[83]；(e) ReSe2/graphene异质结DUV光电探测器结构示意图[84]；(f) 石墨烯纳米壁/Si杂化异质结器件示意图[85]；(g) 具有类金刚石中间碳层（DLC）的Graphene/Si异质结光电探测器结构示意图[86]；(h) Graphene/DLC/Si器件SEM形貌图[86]
Figure 10. Applications of graphene heterojunction in photodetectors: (a) Structure diagram of graphene/PdSe2/Ge heterojunction photodetector[81]; (b) Structure diagram of graphene/n-Si heterojunction photodetector[82]; (c) Energy band diagram of graphene/n-Si heterojunction photodetector[82]; (d) Structure diagram of amorphous-MgGaO/graphene heterojunction ultraviolet photovoltaic device[83]; (e) Structure diagram of ReSe2/graphene heterojunction DUV photodetector[84]; (f) Diagram of graphene nanowall/Si hybrid heterojunction device[85]; (g) Structure diagram of graphene/Si heterojunction photodetector with diamond-like intermediate carbon layer (DLC)[86]; (h) SEM image of graphene/DLC/Si device[86]
表 1 石墨烯异质结制备方法与器件的性能研究现状
Table 1 Current research status of graphene heterojunction preparation methods and device performances
Preparation type Heterojunction structure Method Application and performance Ref. Random transfer Graphene/GaN/PDMS MOCVD Strain-controlled sensor 0.1% compression strain with a gauge factor of 13.48 [49] Graphene/MoS2 CVD Optoelectronic device Response time is 2 ps [50] Graphene/WS2 Mechanical peeling - - [51] Graphene/AlN/Si CVD/ALD Photodetector Rmax=3.96 A·W-1 [52] P3HT/Graphene/ PZT CVD Photodetector Rmax=50 A·W-1 [53] Controlled transfer Graphene/β-Ga2O3 CVD Photodetector R=12.8 A·W-1 [54] MLG/β-Ga2O3 CVD Photodetector D*=5.92×1013 Jones [33] Graphene/Si MOCVD Photodetector R=635 mAW-1 [38] Ge1-xSnx/Graphene CVD Photodetector R=1968 AW-1
D*=2.962×1011 Jones[55] Graphene/Black phosphorus Mechanical peeling Photodetector R=183 mA·W-1
D*=6.69×108 Jones[56] Black phosphorus/Graphene/InSe Mechanical peeling Photodetector R=3.02×104 mA·W-1
D*=3.19×1015 Jones[57] Induced grown Bi2Se3/Graphene MBE Topological insulator anoplate - [58] Graphene/MoS2
Grephene/WSe2
Graphene/h-BNCVD - The light response of the device is significantly improved [59] Bi2Se3/Graphene MBE - - [60] WS2/Graphene CVD - Carrier lifetime increased by an order of magnitude [61] Graphene/MoS2
Grephene/WSe2
Graphene/h-BNCVD Van der Waals (vdWs) hetero-structures Light response is greatly improved [62] WS2/Graphene Hydrothermal Photoelectro chemical-type photodetector Light current is 1.4 μA·cm-2 at 0 V bias [63]
下载: 导出CSV
-
