基于暗通道先验的短波红外图像去雾

刘燕晴; 李中文; 于世孔; 刘芸邑; 姚文婷; 葛志浩; 吉莉; 张宝辉

基于暗通道先验的短波红外图像去雾

刘燕晴^1,,
李中文²,
于世孔²,
刘芸邑²,
姚文婷²,
葛志浩²,
吉莉²,
张宝辉^{1, 2, ,}

1.
昆明物理研究所, 云南昆明 650223
2.
北方夜视科技(南京)研究院有限公司, 江苏南京 211106

详细信息

作者简介:
刘燕晴（1998-），女，硕士研究生，研究方向为红外图像处理。E-mail：lyq210853291@163.com

通讯作者:
张宝辉（1984-），男，博士，正高级工程师，主要研究方向为红外探测与图像处理。E-mail：zbhmatt@163.com

中图分类号: TP391
计量
- 文章访问数: 212
- HTML全文浏览量: 53
- PDF下载量: 73
出版历程
- 收稿日期: 2023-06-14
- 修回日期: 2023-08-06
- 刊出日期: 2023-09-19

Shortwave Infrared Image Dehazing Based on Dark Channel Prior

1.
Kunming Institute of Physics, Kunming 650223, China
2.
North Night-Vision Science & Technology (Nanjing) Research Institute Co. LTD., Nanjing 211106, China

摘要

摘要: 针对短波红外成像系统在雾霾天气下存在图像质量模糊、分辨率低等问题，本文提出了一种基于暗通道先验理论的短波红外图像去雾算法。本文首先通过改进的暗通道先验得到暗通道图像数据，然后基于暗通道数据对大气光进行估计；为了避免目标局部高亮或细节模糊，采用引导滤波和多尺度Retinex（Multi-scale retinex，MSR）对透射率图进行细化和增强处理，最后结合大气散射模型来反演出去雾图像。实验结果表明，经此算法处理后的短波红外图像在主观视觉和客观指标方面均得到了较好的验证，去雾效果显著、细节特征丰富且明亮度适宜。
- 短波红外 /
- 去雾 /
- 暗通道先验 /
- MSR
Abstract: To solve the problems of blurred image quality and low-resolution weather haze in shortwave infrared imaging systems, a shortwave infrared image-defogging algorithm based on a dark channel prior is proposed. First, the algorithm obtains the dark-channel image data using an improved dark-channel prior. Then, the atmospheric light is estimated based on the dark channel data. To avoid local highlights or blurred details of the target, the transmittance map is refined and enhanced using guided filtering and multi-scale retinex (MSR). Finally, the defogged image is inverted using the atmospheric scattering model. The shortwave infrared image processed by this algorithm was verified in terms of subjective vision and objective indicators, displaying a remarkable defogging effect, rich details, and appropriate brightness.
- shortwave infrared /
- dehaze /
- dark channel prior /
- MSR

HTML全文

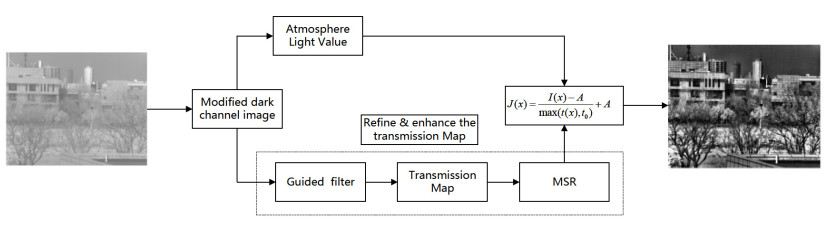

图 1 本文算法框图

Figure 1. The method block diagram of this paper

下载: 全尺寸图片幻灯片

图 2 暗通道对比图

Figure 2. Dark channel comparison chart

下载: 全尺寸图片幻灯片

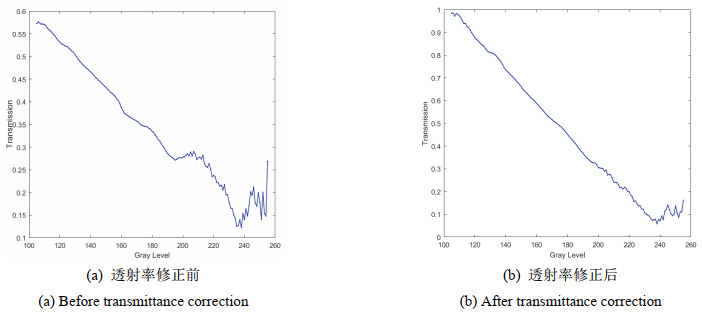

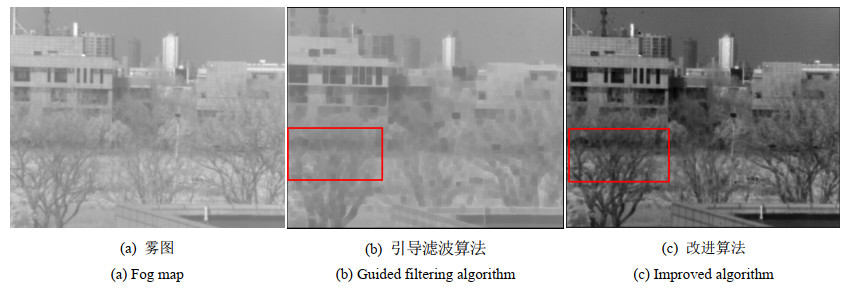

图 3 透射率修正前(a)与透射率修正后(b)对比图

Figure 3. Comparison of transmittance before correction (a) and after transmittance correction (b)

下载: 全尺寸图片幻灯片

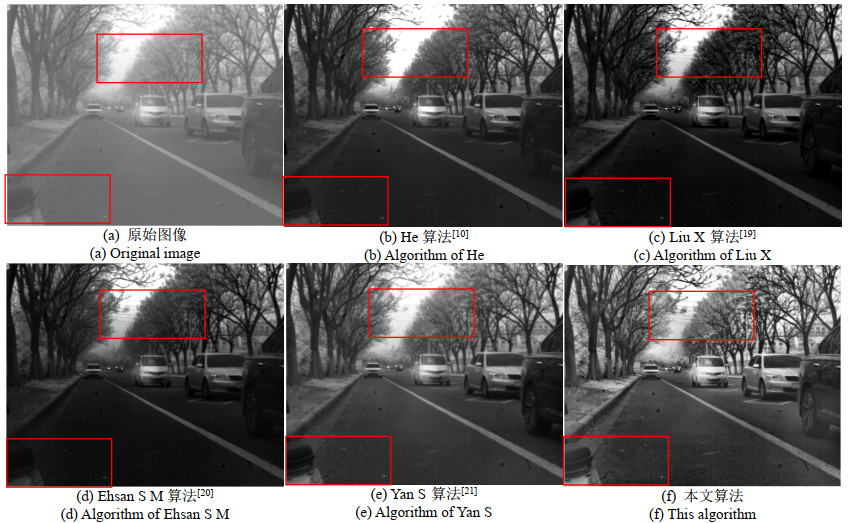

图 4 场景1雾霾图像对比图

Figure 4. Comparison of haze images in scene 1

下载: 全尺寸图片幻灯片

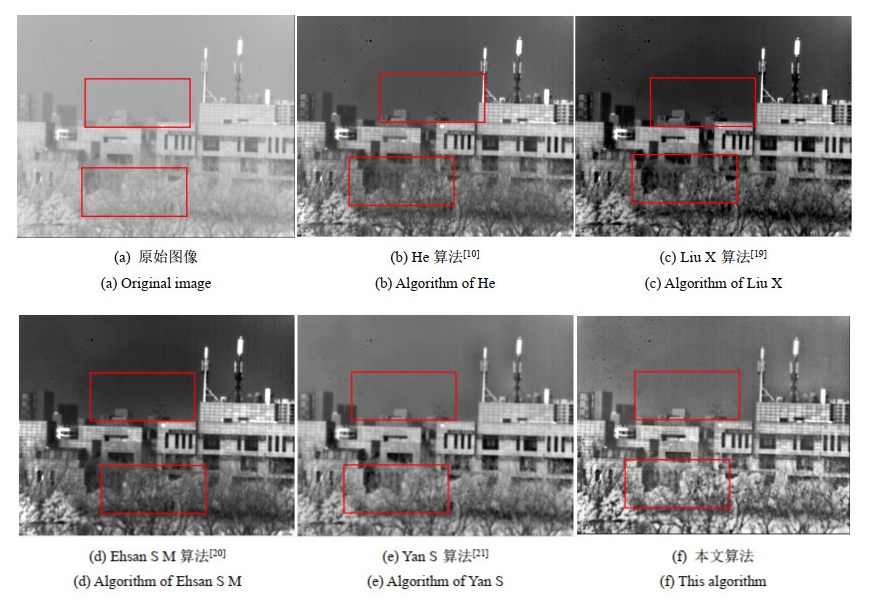

图 5 场景2雾霾图像对比图

Figure 5. Comparison of haze images in scene 2

下载: 全尺寸图片幻灯片

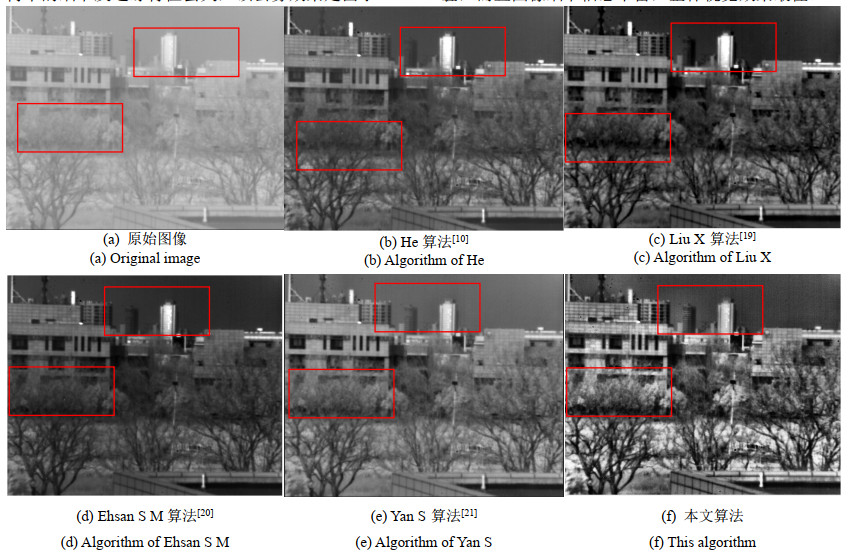

图 6 场景3雾霾图像对比图

Figure 6. Comparison of haze images in scene 3

下载: 全尺寸图片幻灯片

表 1 不同算法的峰值信噪比

Table 1 Peak single to noise ratio of different algorithms

Image He^[10] Liu X^[19] Ehsan^[20] Yan S^[21] Proposed

Fig.4 10.3529 8.0672 7.7717 12.4268 12.7400

Fig.5 11.4504 9.0048 9.3301 13.5508 14.2545

Fig.6 10.6362 7.5611 8.2787 12.4144 12.7427

下载: 导出CSV

表 2 不同算法的平均梯度

Table 2 Average gradient of different algorithms

Image He^[10] Liu X^[19] Ehsan^[20] Yan S^[21] Proposed

Fig.4 5.1524 6.7746 4.8771 6.0122 9.7126

Fig.5 5.9318 6.5066 5.5713 7.0088 10.7187

Fig.6 5.9800 6.7071 7.1609 7.1295 10.7249

下载: 导出CSV

表 3 不同算法的信息熵

Table 3 Information entropy of different algorithms

Image He^[10] Liu X^[19] Ehsan^[20] Yan S^[21] Proposed

Fig.4 6.6543 7.1055 6.5844 6.9944 7.2217

Fig.5 6.5985 6.6076 6.4842 7.2029 7.2868

Fig.6 6.8458 7.2238 7.0303 7.0750 7.2633

下载: 导出CSV
